For Toyota Tacoma 2016-23
Features & Benefits
- Fully-welded from extruded aluminum with a cross beam design, the BASE Rack has no need for a supporting subframe and exerts no flex under load.
- Maximum load per BASE Rack beam is 55 lb. Loads must be evenly distributed and adequately secured.
- The cross beam design provides a loading platform for a more versatile range of cargo, particularly long, thin items such as timber.
- Finished in Integrit textured black powder-coat. This finish creates a durable, anti-corrosive, scratch-resistant surface allowing you to easily clean off debris while the black color adds a sleek modern look to your vehicle.
- Removable end caps allow access to the channel for installing hidden electrical cables for roof lighting and solar.
- Unique dovetail mounting extrusion offers greater versatility, flexibility and speed in accessory placement and attachment. The dovetail design means less dirt entrapment and easy cleaning.
- The BASE Rack does not interfere with the OE mounted antenna and clears the rear beam by approximately 1.2 inches.
- The wind deflector mounted to the underside of the rack results in a quiet driving experience.

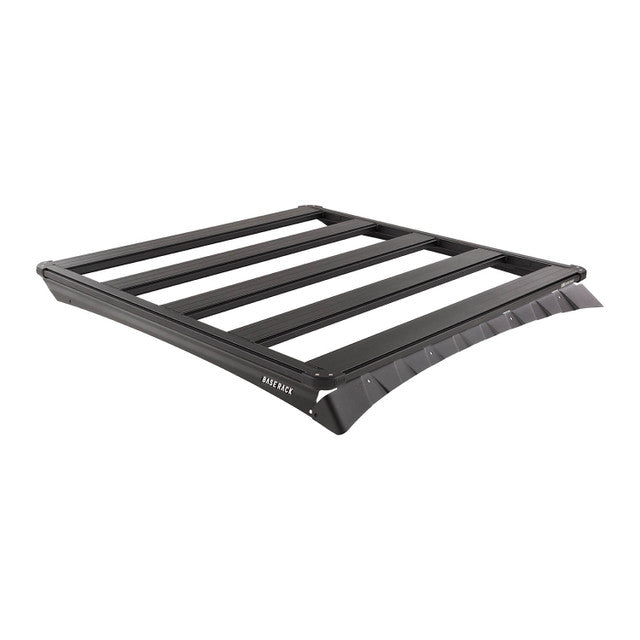

- Suited to a dual-cab the BASE Rack is 49 in (L) x 51 in (W) and approximately 31.5 lb. The added minimum height to the vehicle is 2.4 inches.
- Net payload is 119 lbs per vehicle manufacturer stated load carrying capacity.
Kit Components
- 1770070 BASE Rack, 1
-
17923010 BASE Rack Mount Kit with Deflector, 1
Introducing the next phase in roof rack evolution…
ARB BASE RACK
Ultra sleek, boasting a super low profile and lightweight design, the BASE Rack provides unmatched simplicity, flexibility and personalization in your roof rack set-up. Setting a new benchmark in strength and integration, the BASE Rack incorporates a revolutionary dovetail mounting system that makes attaching and removing loads and accessories easier, faster and more secure.
STRENGTH MEETS STYLE
Fully-welded from extruded aluminum with a cross beam design, the BASE Rack has no requirement for a supporting subframe and exerts no flex under load. Each internal and perimeter beam is constructed from a single seamless extruded aluminum box piece with internal bracing for added strength.
The superior strength properties is what has allowed such close mounting to the vehicle’s roofline.
STRONG
The BASE Rack is manufactured from extruded aluminum beams. To further increase each beam’s rigidity, an additional aluminum bracing has been introduced which runs the entire length of each and every perimeter and internal cross-section.
Unique in design, the BASE Rack runs its beams horizontally instead of laterally, resulting in maximum strength and rigidity. Its strength omits the need of a subframe allowing the rack to sit lower for a sleeker finish.
LOW-PROFILE

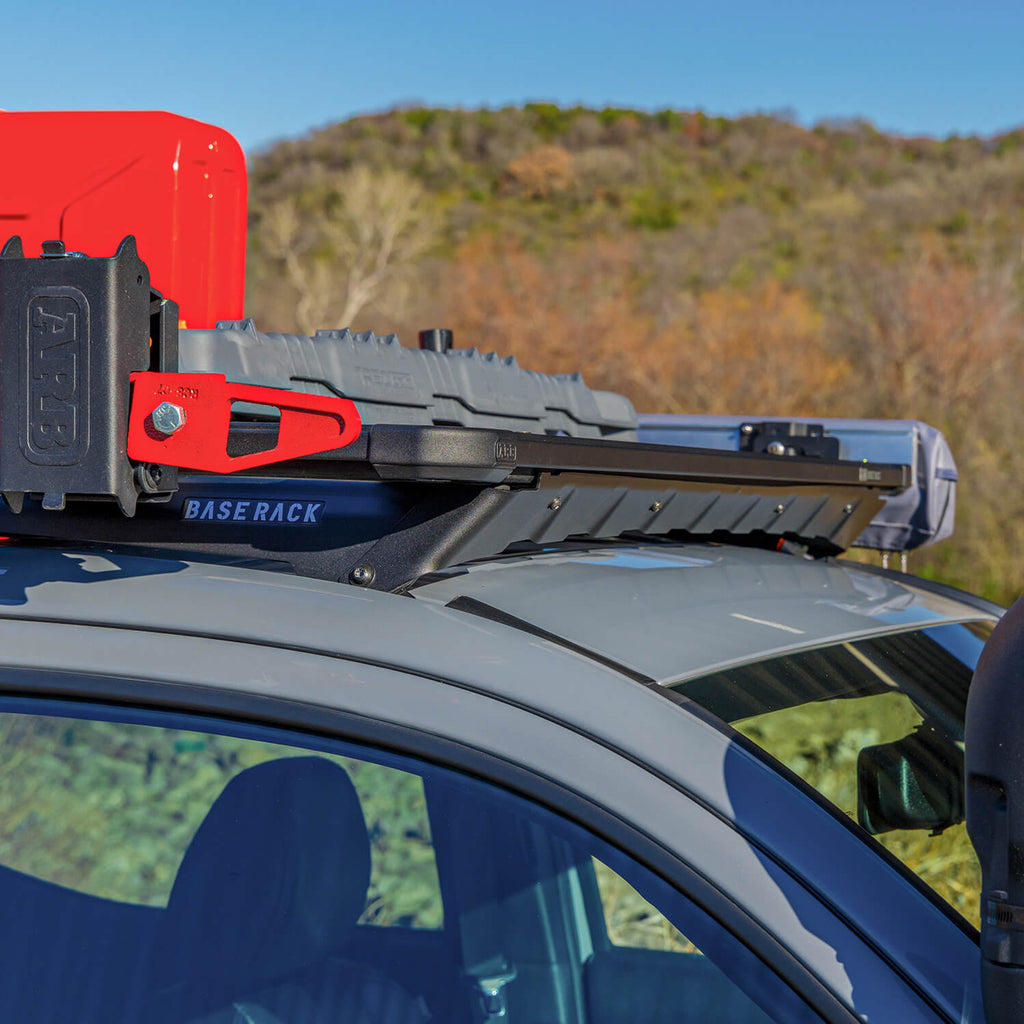

A one-piece, fully welded platform rack fitted to a range of low-profile blade mounts, the BASE Rack provides improved access into low clearance areas, all the while looking sleek on the roof of your vehicle.
UNIQUE DOVETAIL DESIGN
By incorporating a dovetail extrusion around both the full perimeter and along each edge of the internal beams, the BASE Rack provides endless mounting and attachment options.
Side mounting also frees up more uninterrupted cargo space along the top of each internal and external beam.
CABLES BE GONE
Nothing ruins the sleek look like visible electrical cable. Yet another advantage of the aluminum extruded beam design is that electrical cabling can be fed in either through the removable corner caps or via the capped access points available on the inner surface of the side perimeter beams. Additional holes can easily be introduced along the perimeter beams wherever you are mounting your work or driving lights.
THE RANGE
The BASE Rack is available in a number of sizes to complement the vast range of 4×4’s on the market.
Sold standard as a low-profile platform rack, then it can easily transform into a touring or trade rack by simply installing the rail system that best suits your needs!
Part# |
Dimensions |
Beams |
Weight |
Carrying Capacity |
Suited To |
|---|---|---|---|---|---|
| 1770060 | 49 IN (L) X 45 IN (W) | 5 | 28.0 lbs | 275.6 lbs | Dual-cab |
| 1770070 | 49 IN (L) X 51 IN (W) | 5 | 31.5 lbs | 275.6 lbs | Dual-cab |
| 1770020 | 61 IN (L) X 51 IN (W) | 6 | 36.6 lbs | 330.7 lbs | Single-cab, short canopy or wagon with sunroof |
| 1770010 | 72 IN (L) X 45 IN (W) | 7 | 39.0 lbs | 385.8 lbs | Narrow canopy |
| 1770030 | 72 IN (L) X 51 IN (W) | 7 | 43.9 lbs | 385.8 lbs | Wider canopy or Smaller Wagon |
| 1770040 | 84 IN (L) X 51 IN (W) | 8 | 50.3 lbs | 440.9 lbs | Larger Cab Wagon |
MAKE IT YOUR OWN

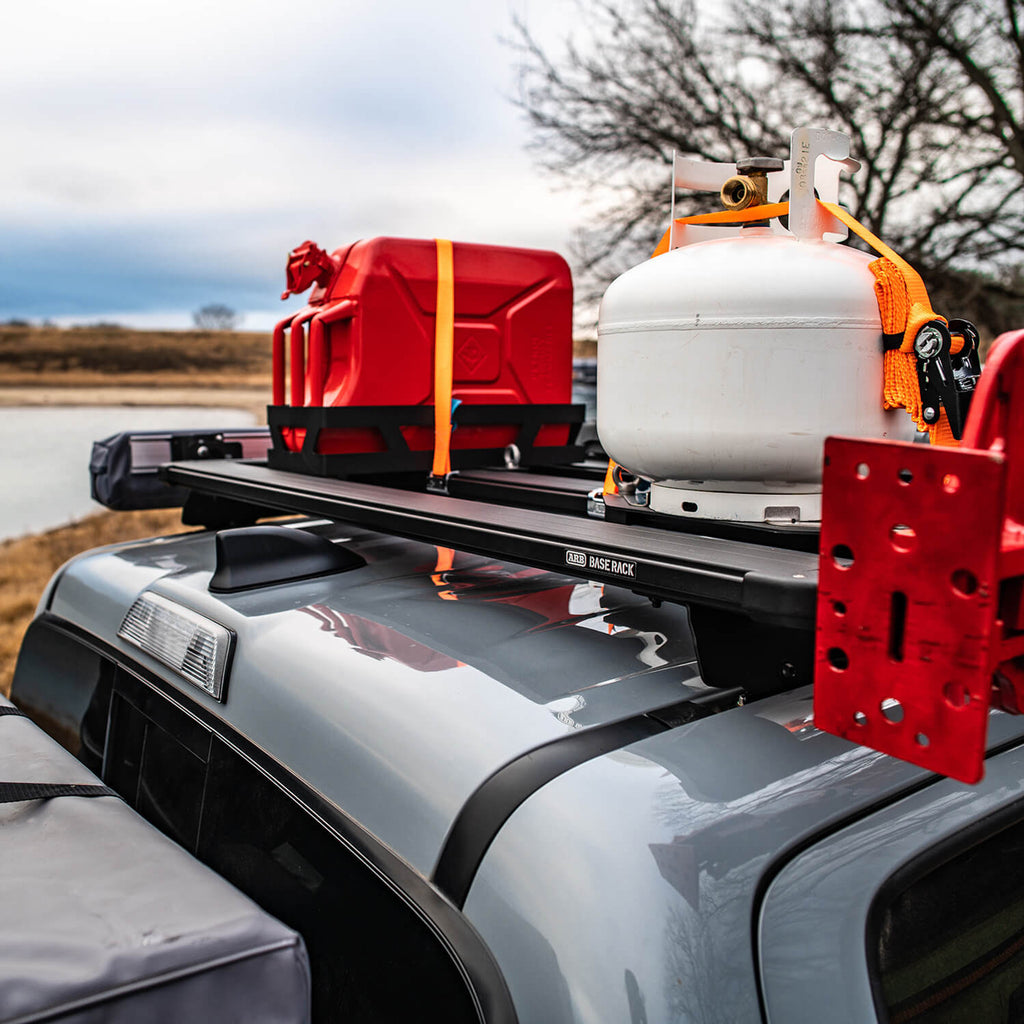

The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed, and personalization thanks to its revolutionary side-mounting dovetail system. With a choice of sizes, accessories, and attachments, you can truly Make It Your Own.
Adding, removing, and repositioning accessories and roof loads is quick and simple with the BASE Rack’s dovetail system, making it easier to install and remove individual items without disturbing any other cargo or lashing points.
Tech Specs
Color |
Black |
Width |
51 in |
Length |
49 in |
Finish |
Textured |
Material |
Extruded Aluminum |
Prop 65
|
No |
Warranty |
3 YR |
