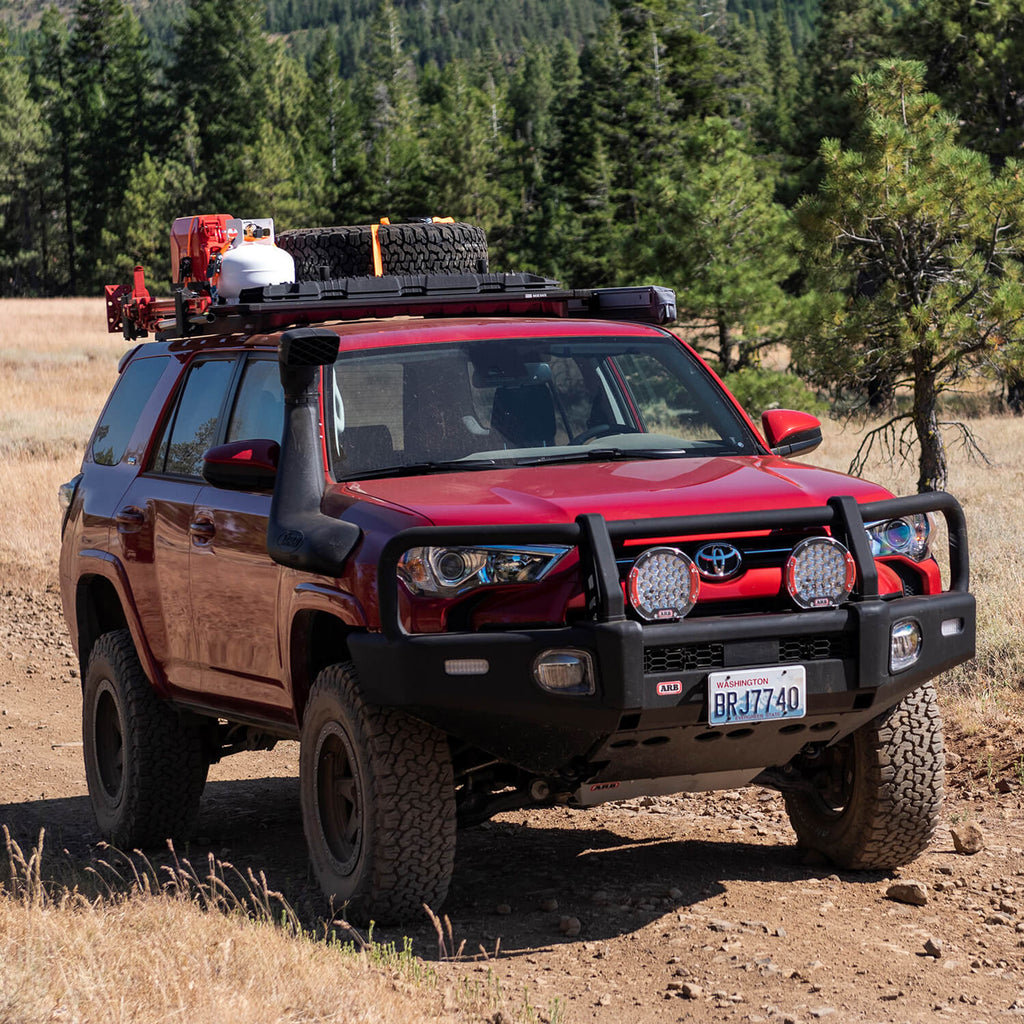

For Toyota 4Runner Gen 5 2010-23
Features & Benefits
- Extruded Aluminium Beams Feature Rigid Internal Bracing
- Fully Welded Construction (Excluding Corner Caps)
- Fully Assembled, Ready-to-Fit Mount Brackets
- Integrit Textured Black Powder-Coat Finish
- Strength Through Design Requires No Additional Cross Bars
- Dovetail Accessory Attachment Allows Easy, One-Handed Attachment
- Provision to Easily Run Wiring Within the BASE Rack Assembly
Kit Components
- 1770020 BASE Rack, 1
- 17921030 BASE Rack Mount Kit, 1
-
17921040 BASE Rack Deflector, 1
Introducing the next phase in roof rack evolution…

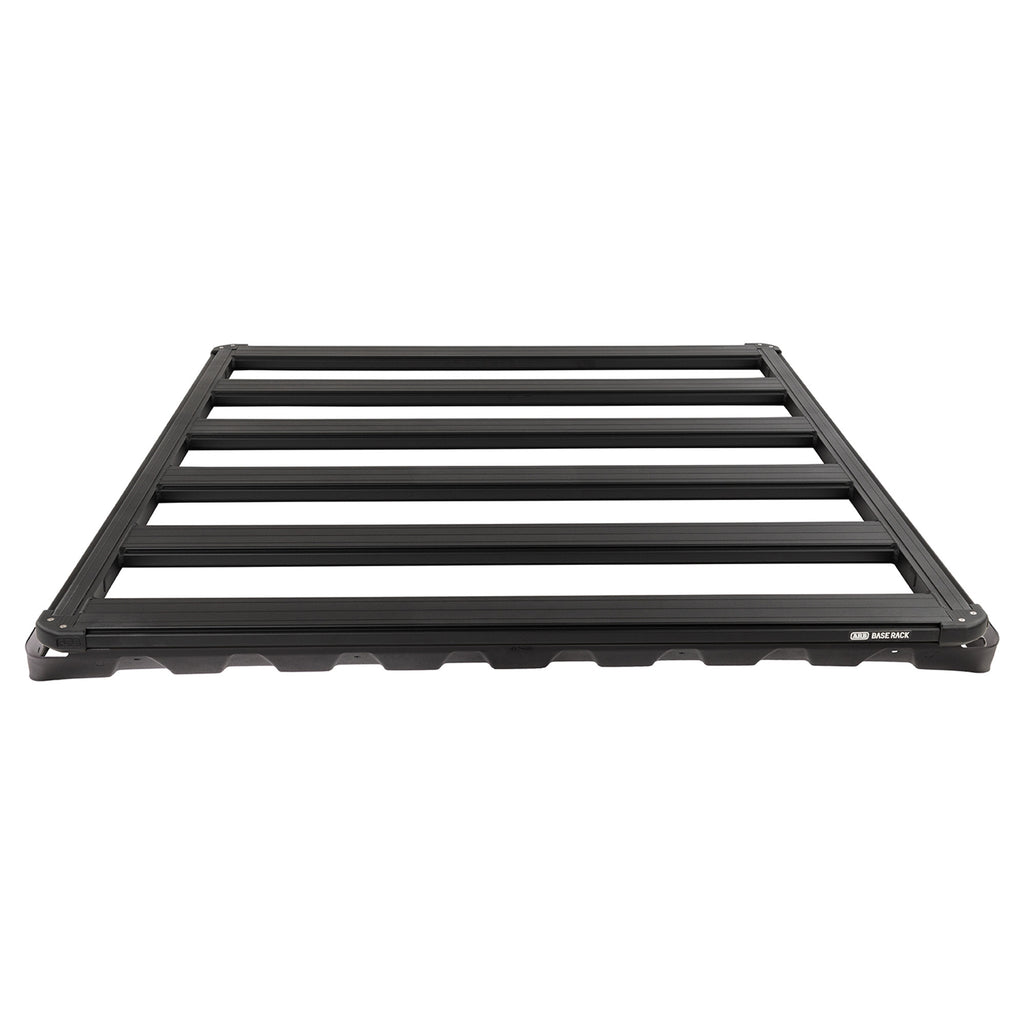

ARB BASE RACK
Ultra sleek, boasting a super low profile and lightweight design, the BASE Rack provides unmatched simplicity, flexibility and personalization in your roof rack set-up. Setting a new benchmark in strength and integration, the BASE Rack incorporates a revolutionary dovetail mounting system that makes attaching and removing loads and accessories easier, faster and more secure.
STRENGTH MEETS STYLE
Fully-welded from extruded aluminum with a cross beam design, the BASE Rack has no requirement for a supporting subframe and exerts no flex under load. Each internal and perimeter beam is constructed from a single seamless extruded aluminum box piece with internal bracing for added strength.
The superior strength properties is what has allowed such close mounting to the vehicle’s roofline.
STRONG
The BASE Rack is manufactured from extruded aluminum beams. To further increase each beam’s rigidity, an additional aluminum bracing has been introduced which runs the entire length of each and every perimeter and internal cross-section.
Unique in design, the BASE Rack runs its beams horizontally instead of laterally, resulting in maximum strength and rigidity. Its strength omits the need of a subframe allowing the rack to sit lower for a sleeker finish.
LOW-PROFILE
A one-piece, fully welded platform rack fitted to a range of low-profile blade mounts, the BASE Rack provides improved access into low clearance areas, all the while looking sleek on the roof of your vehicle.
UNIQUE DOVETAIL DESIGN
By incorporating a dovetail extrusion around both the full perimeter and along each edge of the internal beams, the BASE Rack provides endless mounting and attachment options.
Side mounting also frees up more uninterrupted cargo space along the top of each internal and external beam.
CABLES BE GONE
Nothing ruins the sleek look like visible electrical cable. Yet another advantage of the aluminum extruded beam design is that electrical cabling can be fed in either through the removable corner caps or via the capped access points available on the inner surface of the side perimeter beams. Additional holes can easily be introduced along the perimeter beams wherever you are mounting your work or driving lights.
THE RANGE
The BASE Rack is available in a number of sizes to complement the vast range of 4×4’s on the market.
Sold standard as a low-profile platform rack, then it can easily transform into a touring or trade rack by simply installing the rail system that best suits your needs!
Part# |
Dimensions |
Beams |
Weight |
Carrying Capacity |
Suited To |
|---|---|---|---|---|---|
| 1770060 | 49 IN (L) X 45 IN (W) | 5 | 28.0 lbs | 275.6 lbs | Dual-cab |
| 1770070 | 49 IN (L) X 51 IN (W) | 5 | 31.5 lbs | 275.6 lbs | Dual-cab |
| 1770020 | 61 IN (L) X 51 IN (W) | 6 | 36.6 lbs | 330.7 lbs | Single-cab, short canopy or wagon with sunroof |
| 1770010 | 72 IN (L) X 45 IN (W) | 7 | 39.0 lbs | 385.8 lbs | Narrow canopy |
| 1770030 | 72 IN (L) X 51 IN (W) | 7 | 43.9 lbs | 385.8 lbs | Wider canopy or Smaller Wagon |
| 1770040 | 84 IN (L) X 51 IN (W) | 8 | 50.3 lbs | 440.9 lbs | Larger Cab Wagon |

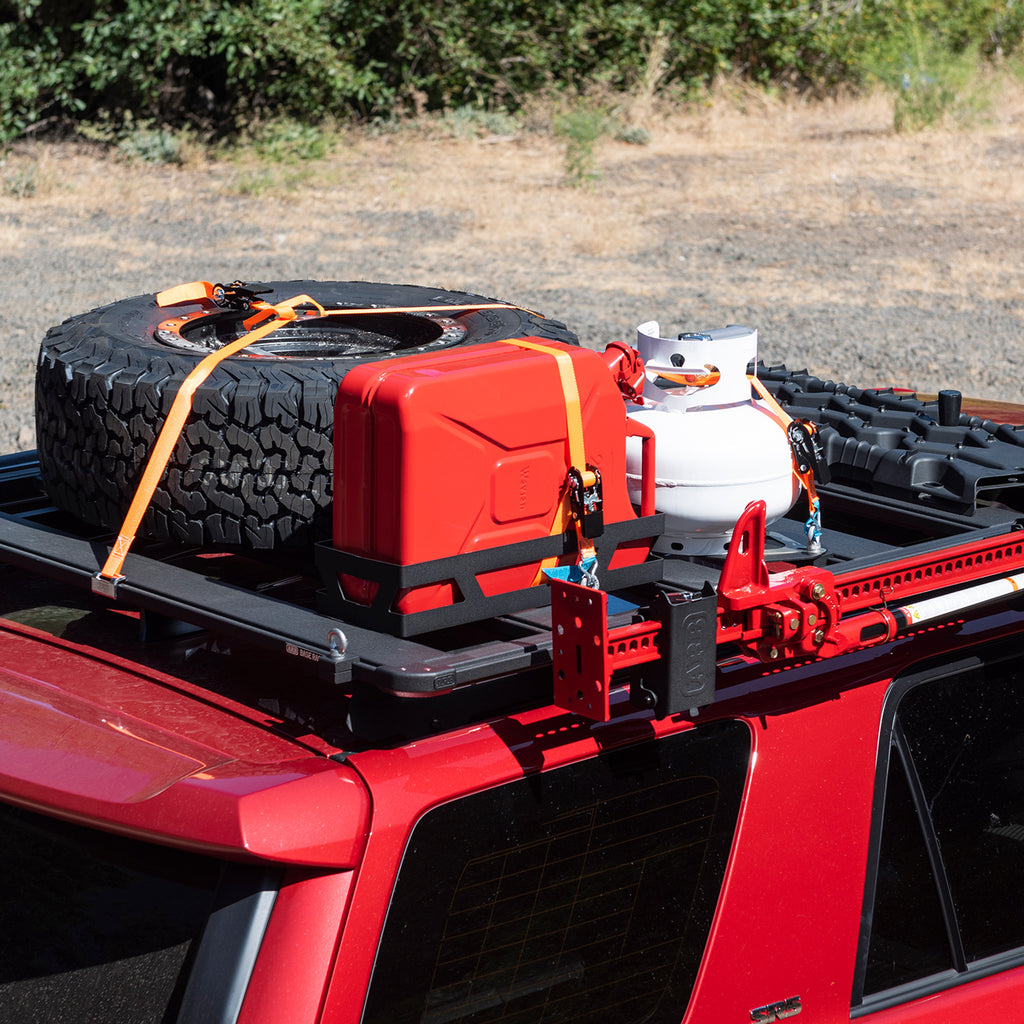

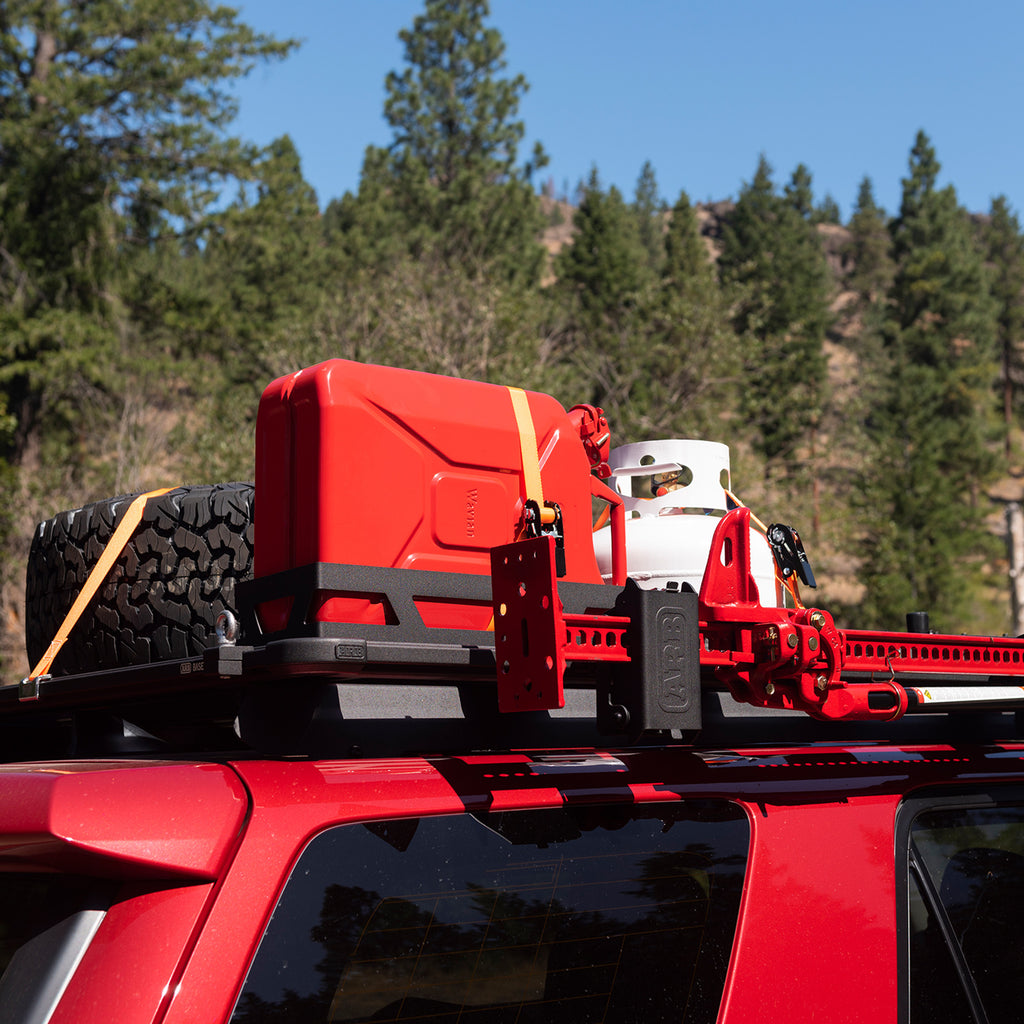

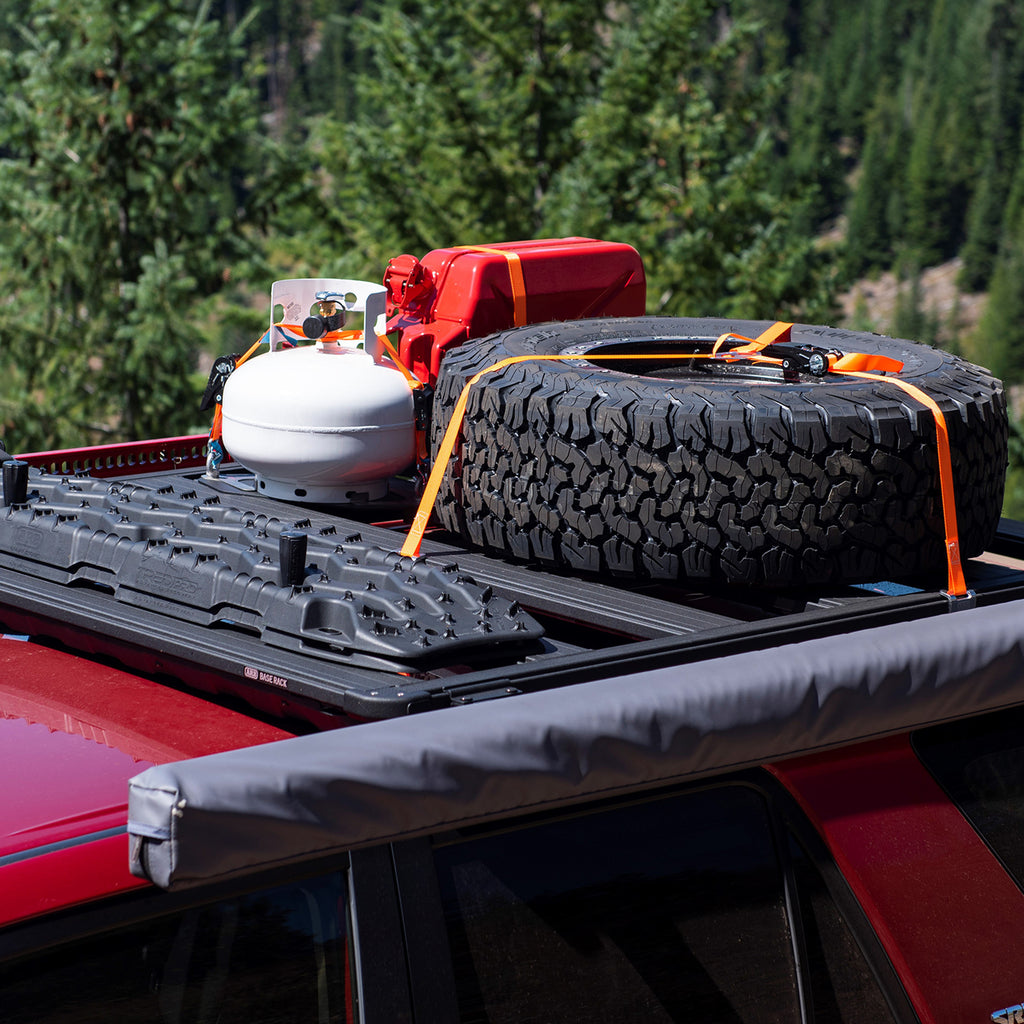

MAKE IT YOUR OWN
The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed, and personalization thanks to its revolutionary side-mounting dovetail system. With a choice of sizes, accessories, and attachments, you can truly Make It Your Own.
Adding, removing, and repositioning accessories and roof loads is quick and simple with the BASE Rack’s dovetail system, making it easier to install and remove individual items without disturbing any other cargo or lashing points.
Tech Specs
Color |
Black |
Width |
51 in |
Length |
61 in |
Finish |
Textured |
Material |
Aluminum |
Prop 65
|
No |
Warranty |
3 YR |
