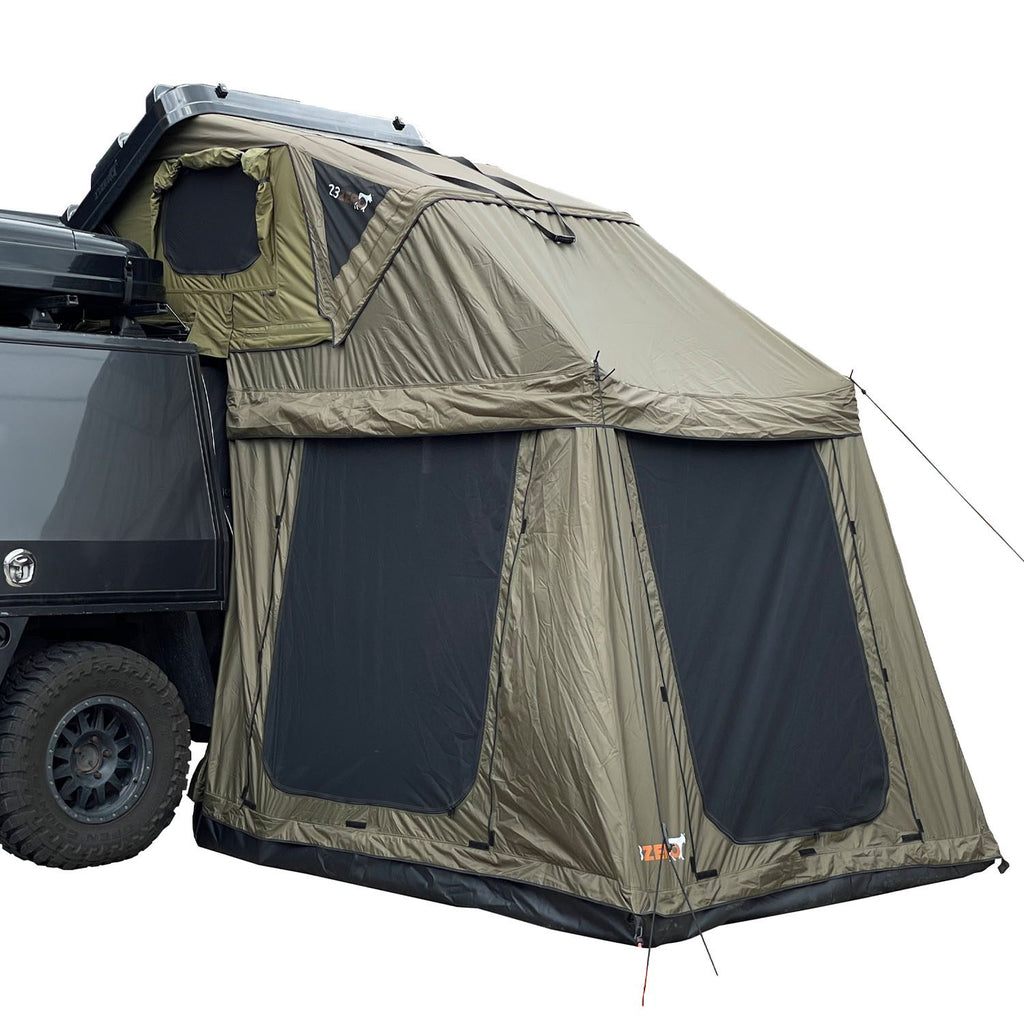

Step into the ultimate outdoor retreat with the 23Zero Armadillo X2 & X3 Annex, designed to elevate your camping experience. This versatile haven offers a spacious living area, multiple entry points, and effortless deployment. Enjoy the freedom to relax, unwind, and connect with nature in style. With its adaptable design and premium features, this annex is the perfect addition to your Armadillo X2 or X3 setup. Whether you're seeking a private sanctuary or an entertaining hub, this annex has got you covered.
Features:
- Spacious Living Area: Ceiling height of 75 to 86 inches and approximately 60 square feet of living space for various uses like a storm shelter, sunshade, or private area.

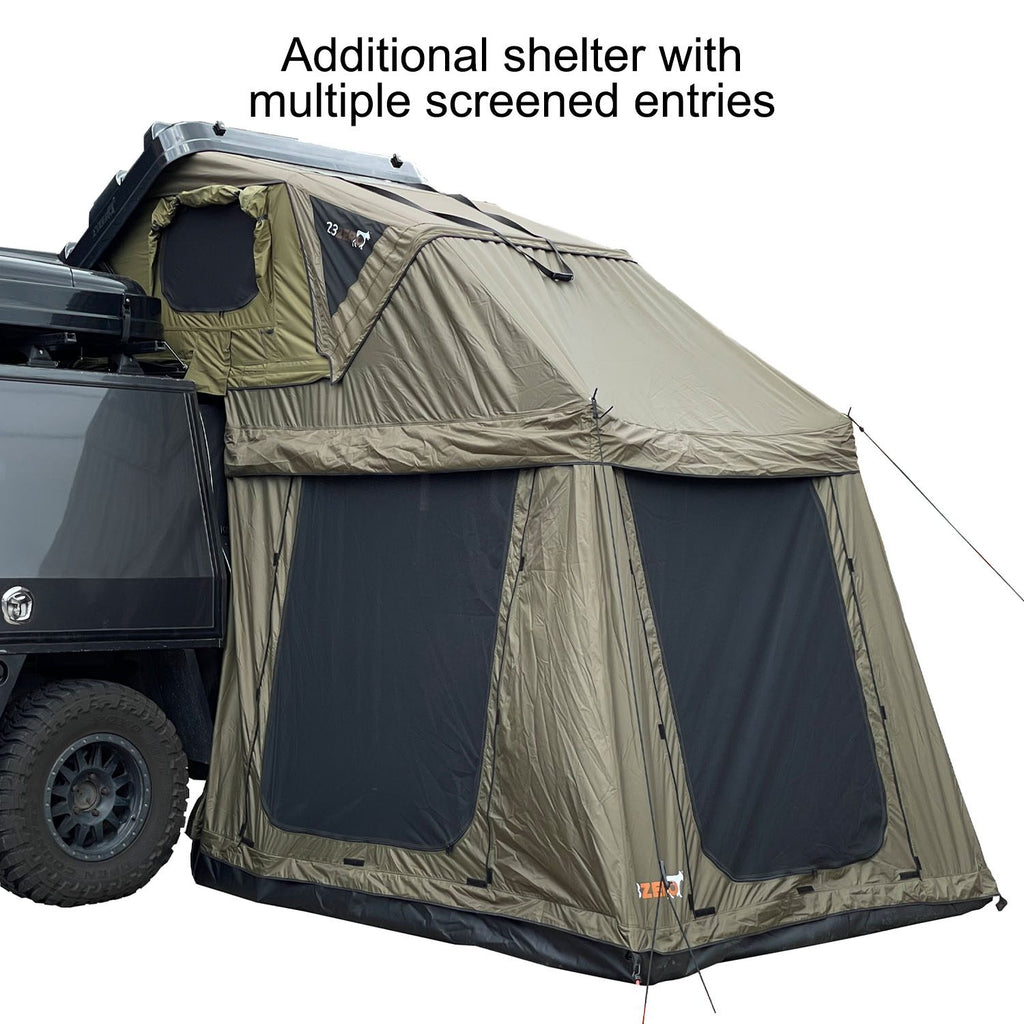

- Multiple Entry Points: Rear door for vehicle access, large front door, and two side doors, with screens to keep insects out while providing ventilation.
- Effortless Deployment: It’s a simple setup. Slide into the sail track, zip to the tent’s rain fly, stake down the corners, deploy the poles, and secure the guy lines.
- Portable and Lightweight: Storage size of 36” W x 13” L x 11” H and weight of 28-30 lbs for easy transportation.

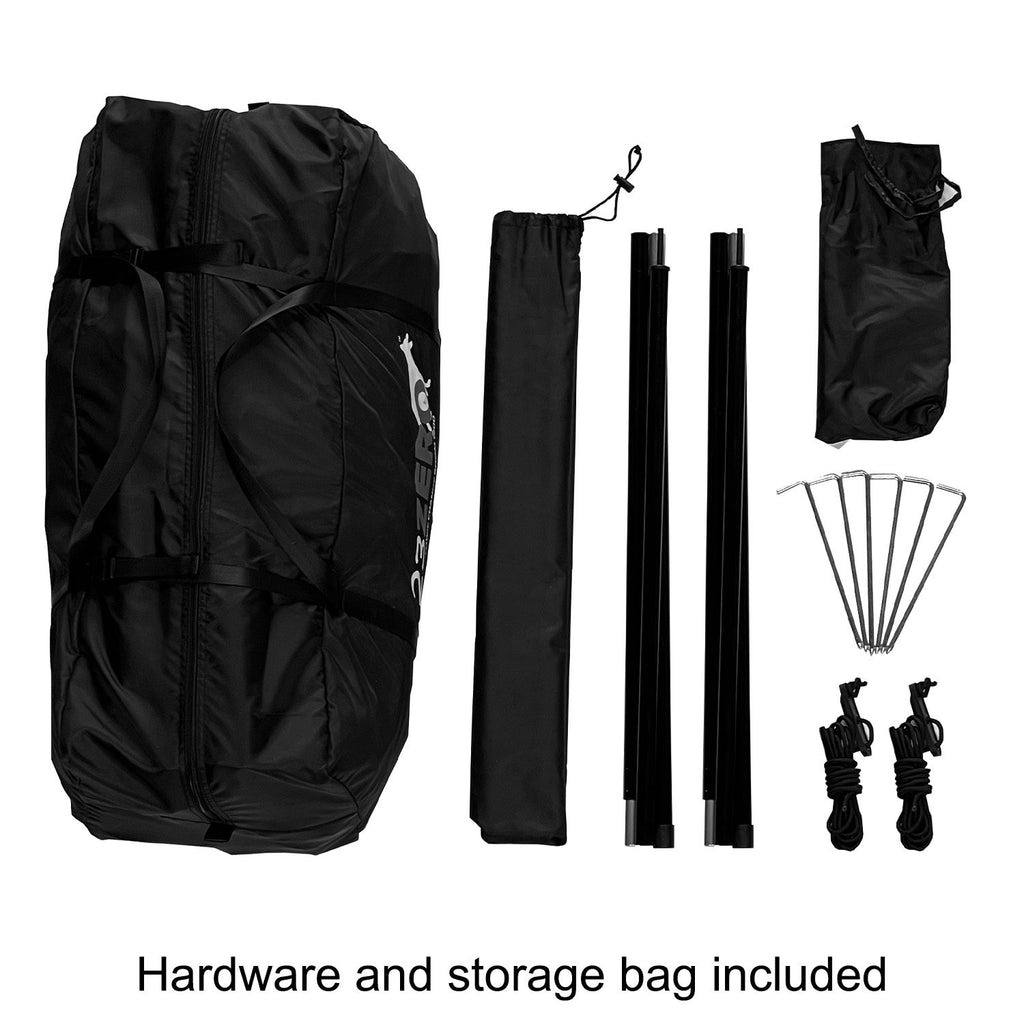

Included
- Privacy shelter

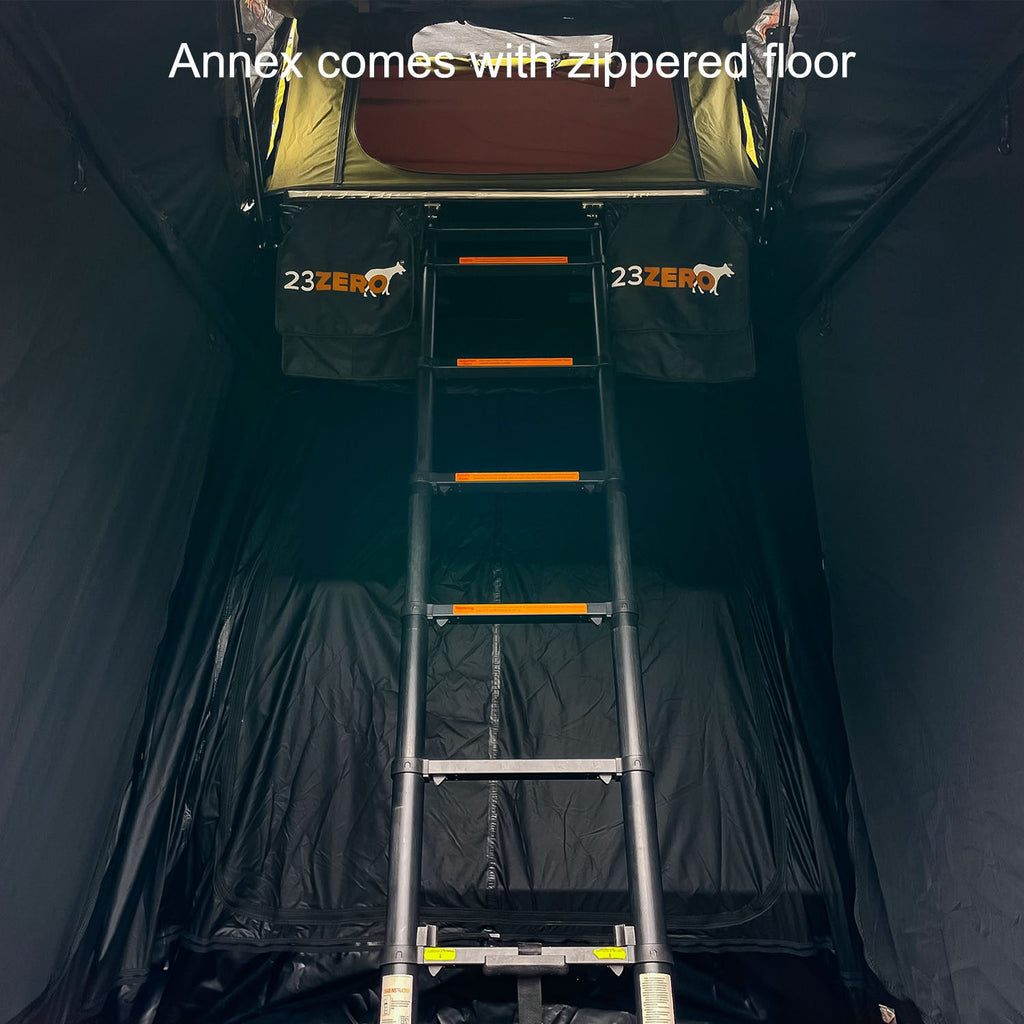

- Annex floor
- Large storage bag
- Six (6) stakes with bag
- Two (2) support poles with bag
- Two (2) guy lines
Specifications*
- Storage Size: 36” W x 13” L x 11” H
- Storage Weight: 28-29 lbs
Some Recommendations
- The Armadillo X2 / X3 rooftop tent annex should not be stored within the main tent while it is zipped to the rain fly or attached to the sail track.
- Ensure all four corners of the annex are securely staked, and attach and stake the guy lines to the two poles for stability.
- Do not store the annex while it is still attached to the rain fly or sail track to avoid potential damage and ensure longevity.
- The annexes are designed to be attached to tents mounted at 75” (+/- 3”). Different support poles may be required for shorter or taller situations.
- Compatible with Armadillo X2 and X3 tents, respectfully. Not compatible with X2 Slim.
Additional Dimensions & Measurement*
| X2 | X3 | |
| Floor / Ground Coverage | 80” W x 104” L – 60 sq ft | 80” W x 104” L – 60 sq ft |
| Inside Height Depending on the ground. | 68” to 86” H | 68” to 86” H |
| Mounting Height. | 75” H +/- 3” | 75” H +/- 3” |
| Pole Length | 79” | 79” |
| Door Size (U Shaped) | 41” W x 64” H | 41” W x 64” H |
| Side Door Size (2) | 47” W x 58” H | 47” W x 58” H |
| Side Bottom Width | 103” W | 106” W |
| Side Top Width | 78” W | 83” W |
| Front Bottom Width | 80” W | 85” W |
| Front Top Width | 60” W | 65” W |
| Front Height | 71” H | 71” H |
| Vehicle Access Door | 50” W x 60” H | 50” W x 60” H |
*All dimensions and measurements are approximations and, when in the wild, will vary given your camping conditions, ground variations, how the tent is mounted on your rig, and other conditions.
