Description

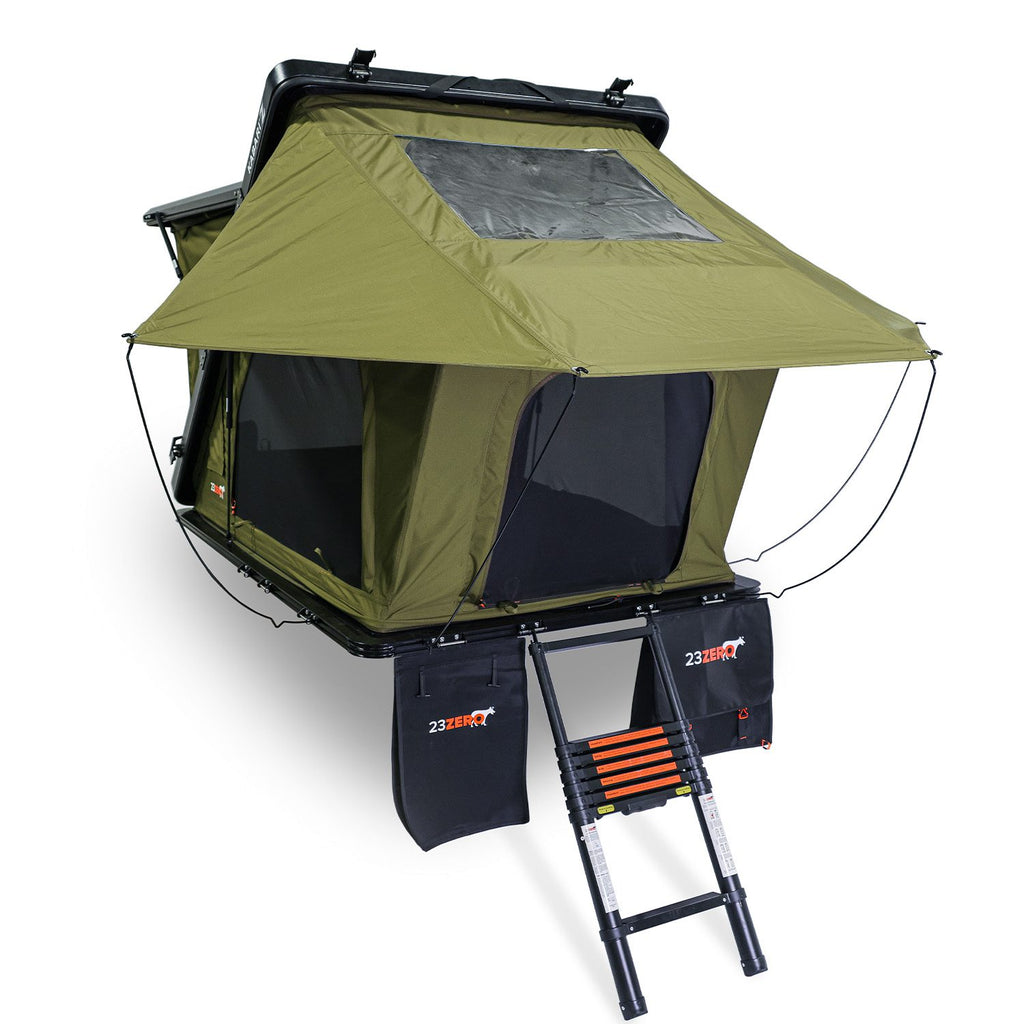

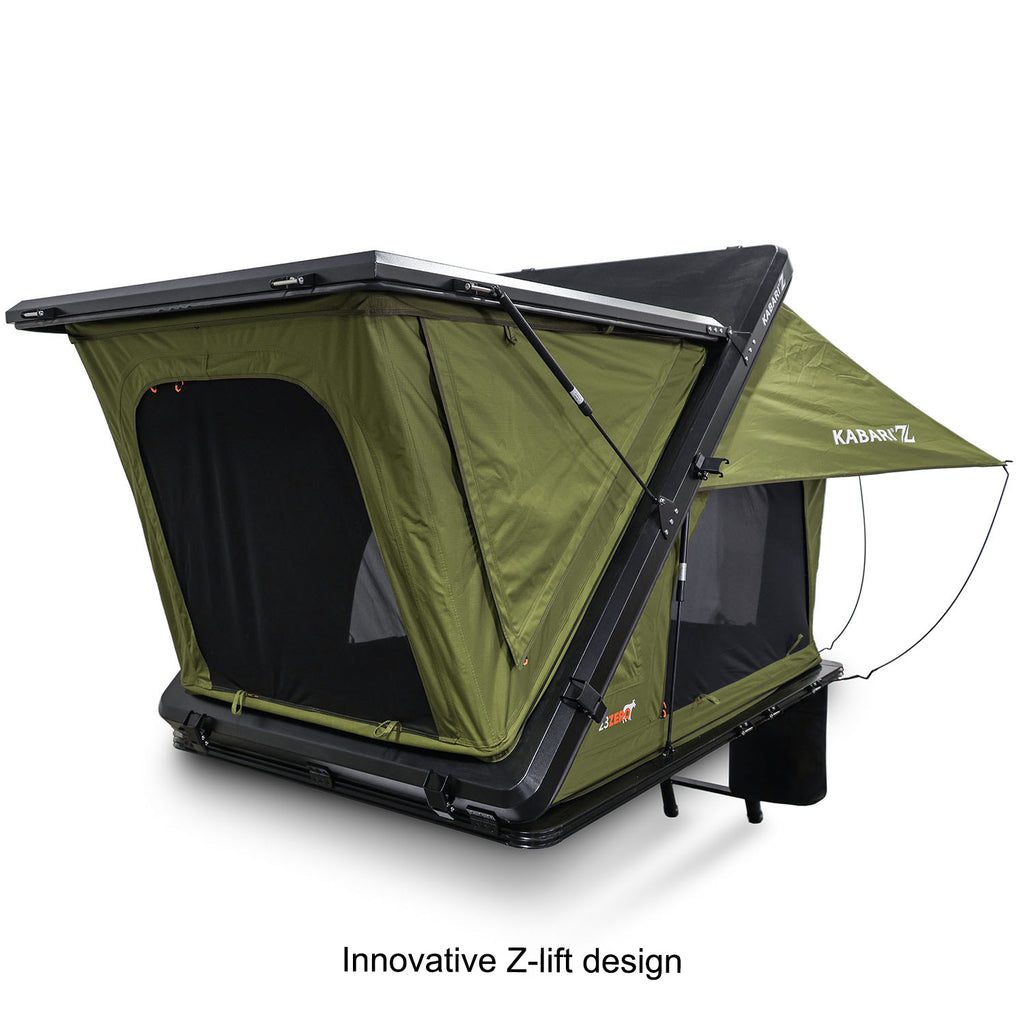

The 23Zero Kabari Z is an aluminum clamshell rooftop tent built around a multi-hinge, gas-assisted Z-lift mechanism. Developed jointly by 23Zero Australia and 23Zero USA, it can be used like a traditional clamshell or opened fully into a Z configuration for far more headroom, genuine 360-degree views, and entry from all four sides.
Built Strong, Stays Low

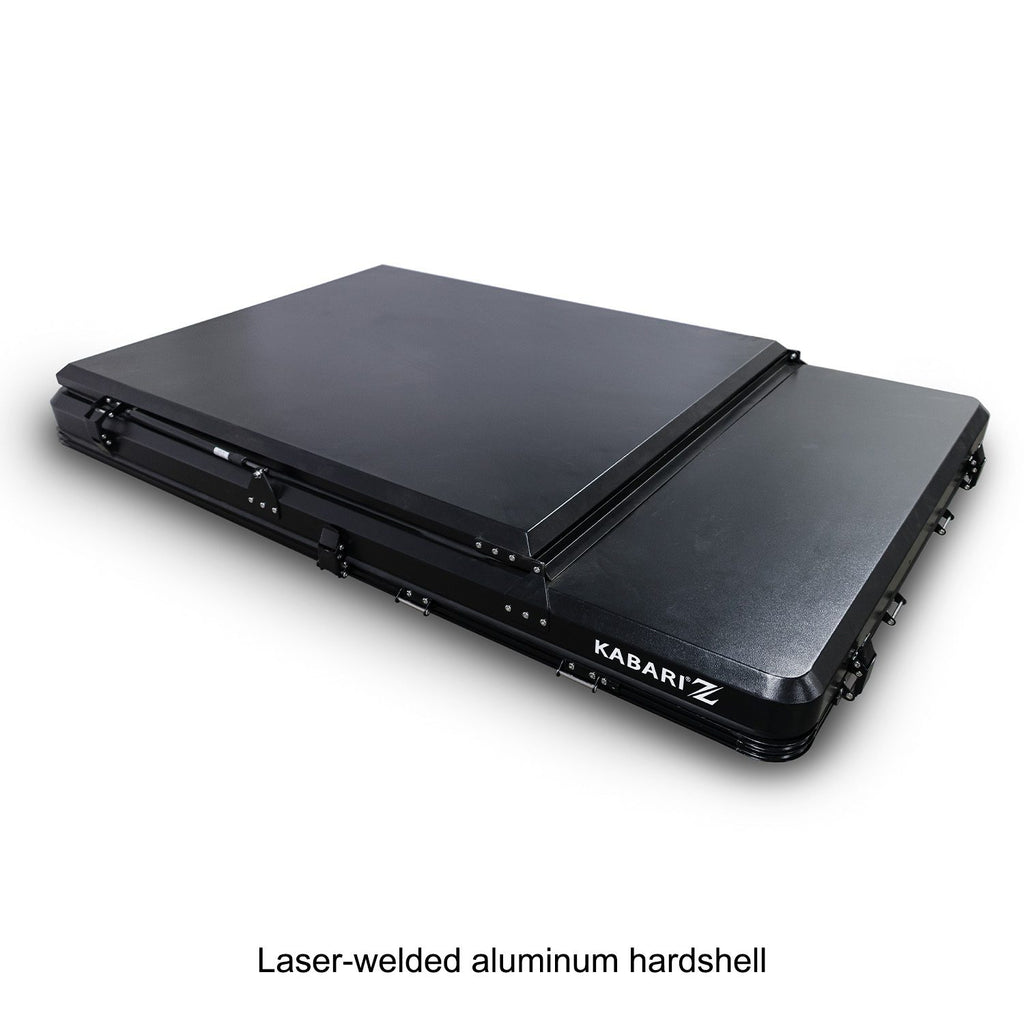

The shell is 2mm laser-welded aluminum with radiused corners to reduce fatigue points, mounted on an aluminum honeycomb base with a PVDF anti-oxidation coating. The structure is rated for more than 1,000 lb of static load, yet it closes down to a low, aerodynamic profile for the drive.
The shell is 2mm laser-welded aluminum with radiused corners to reduce fatigue points, mounted on an aluminum honeycomb base with a PVDF anti-oxidation coating. The structure is rated for more than 1,000 lb of static load, yet it closes down to a low, aerodynamic profile for the drive.
Comfort and Power Built In

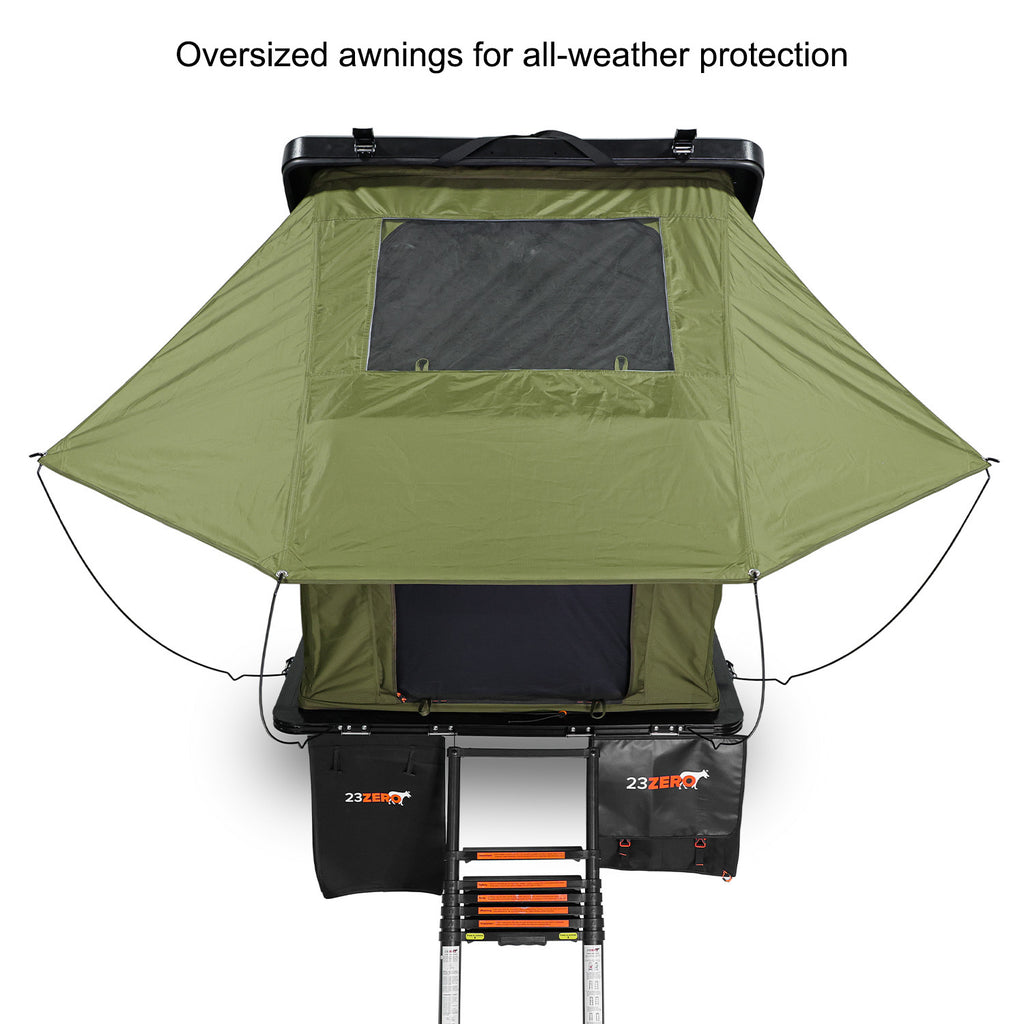

A 2.4" self-inflating mattress lets you set your own firmness, with a 10mm insulated underlay to manage condensation and heat loss. ECO13B fabric with Light Suppression Technology keeps the interior cooler and darker. Oversized entry awnings, triangular mesh windows, and 125 gsm insect screens balance airflow and weather protection. A built-in power hub with voltage meter, USB-A, USB-C, and 12V outlets runs off an external Anderson SB-50 plug under the tent, and your bedding can stay inside when the tent is closed.
A 2.4" self-inflating mattress lets you set your own firmness, with a 10mm insulated underlay to manage condensation and heat loss. ECO13B fabric with Light Suppression Technology keeps the interior cooler and darker. Oversized entry awnings, triangular mesh windows, and 125 gsm insect screens balance airflow and weather protection. A built-in power hub with voltage meter, USB-A, USB-C, and 12V outlets runs off an external Anderson SB-50 plug under the tent, and your bedding can stay inside when the tent is closed.
Features

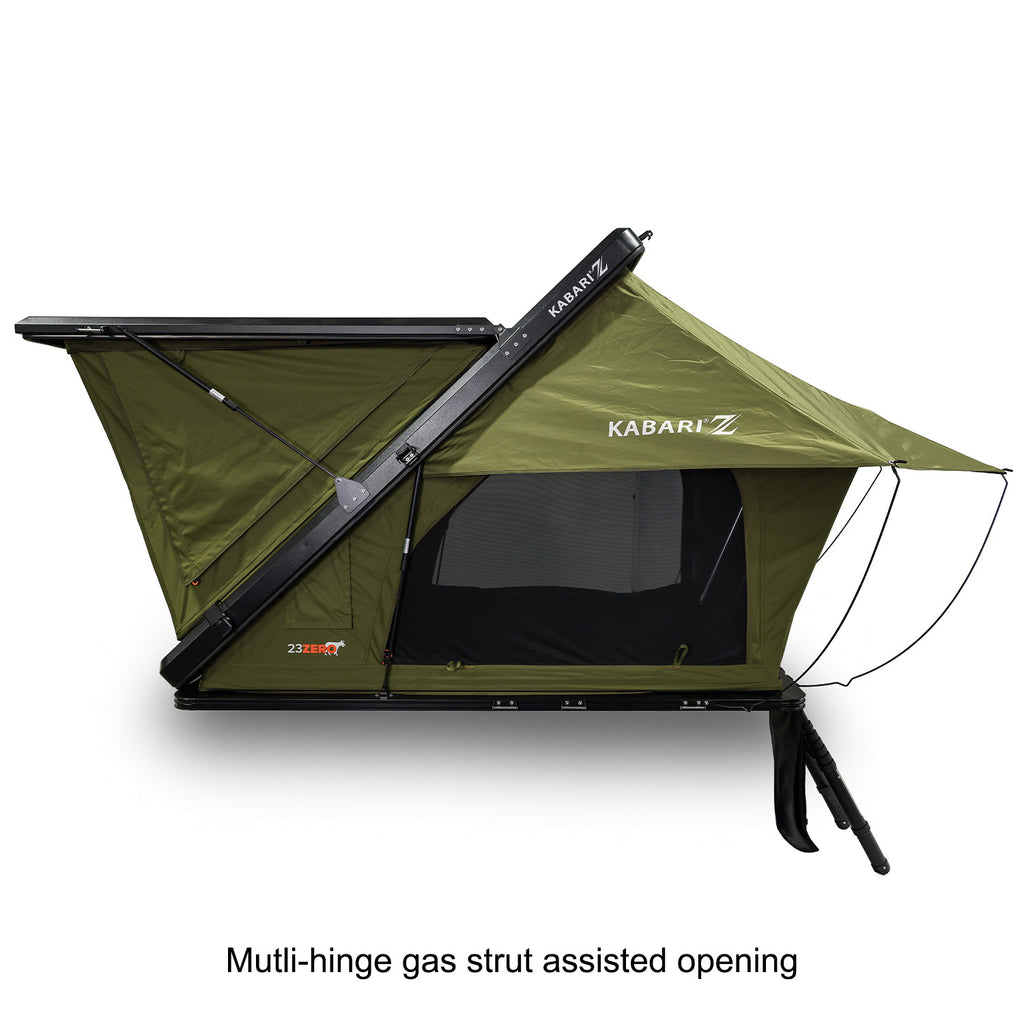

- Z-lift deployment with gas-assisted hinges
- Use as a clamshell or fully open Z configuration

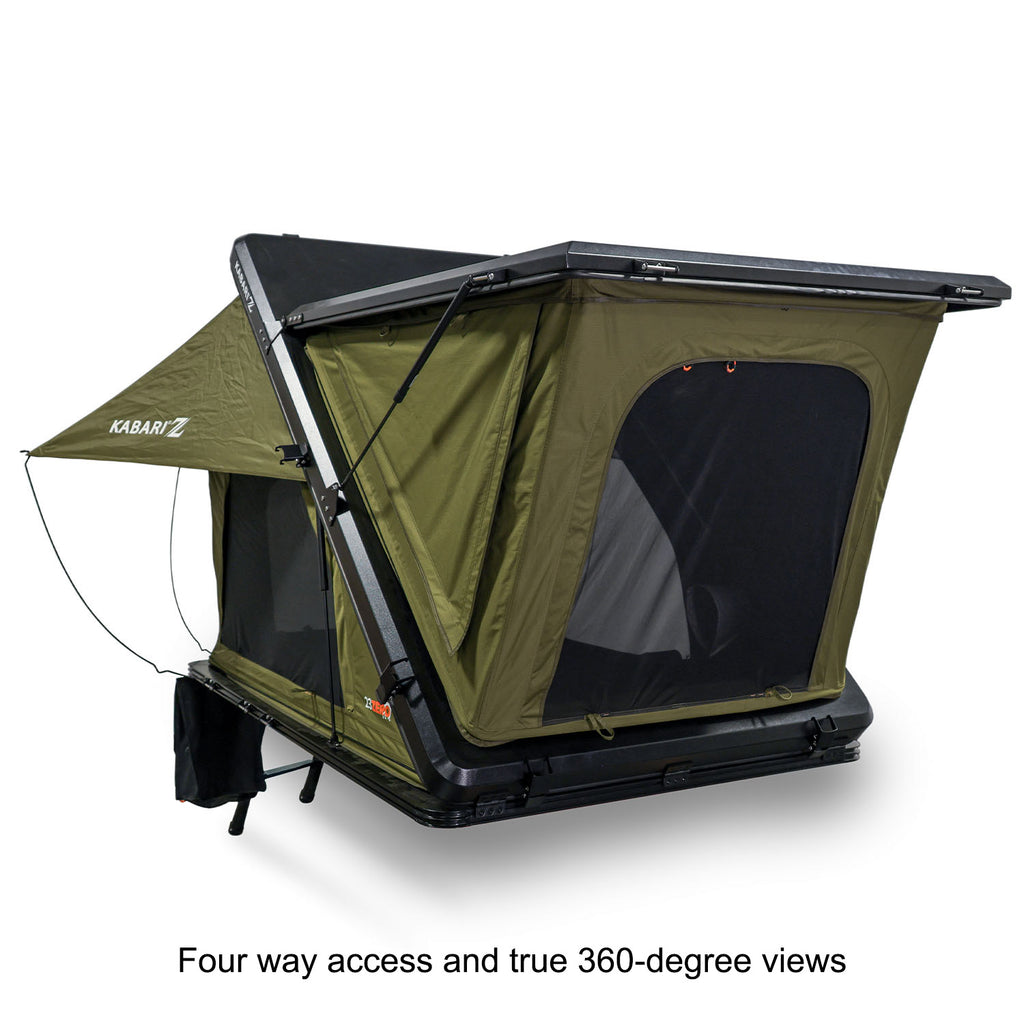

- Four-way access and 360-degree views
- Up to 58" of interior headroom
- 2mm laser-welded aluminum shell
- Aluminum honeycomb base with PVDF coating

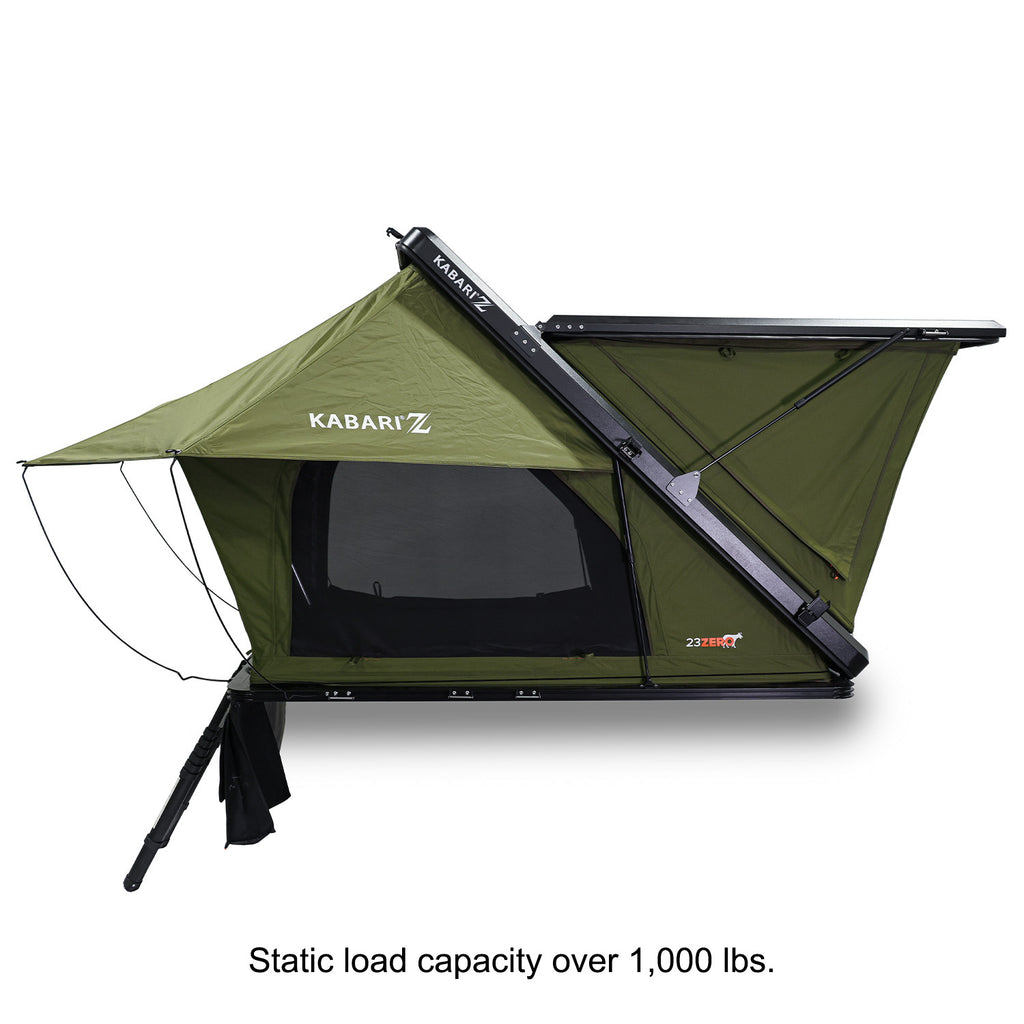

- Static load capacity over 1,000 lb
- Low-profile aerodynamic closed design
- ECO13B fabric with Light Suppression Technology
- 2.4" self-inflating mattress with adjustable firmness
- 10mm insulated underlay
- Dimmable white and amber LED light
- Power hub with voltage meter, USB-A, USB-C, and 12V
- External Anderson SB-50 plug (power source and cable not included)
- Two 5" heater/cooler ports with zippered wiring access
- Gear loft, side pockets, boot bag, and gear storage bag
- Roof cross bars for carrying extra gear
- Bedding stays inside when closed
Kit Includes
- Four (4) mounting plates
- Eight (8) mounting hardware sets (slider, M8 1.25 x 2.5" bolt, washer, 13mm nylock nut)
- 13mm ratcheting wrench and Allen wrench
- Four (4) rail end caps
- Handle with hardware
- Patch kit and spare hardware kit in zippered bag
- Ladder with storage bag
- 44" LED light with USB switch and cable
- Four (4) 45" rain fly poles with storage bag
- Two (2) roof cross bars (2" x 51" x 0.5")

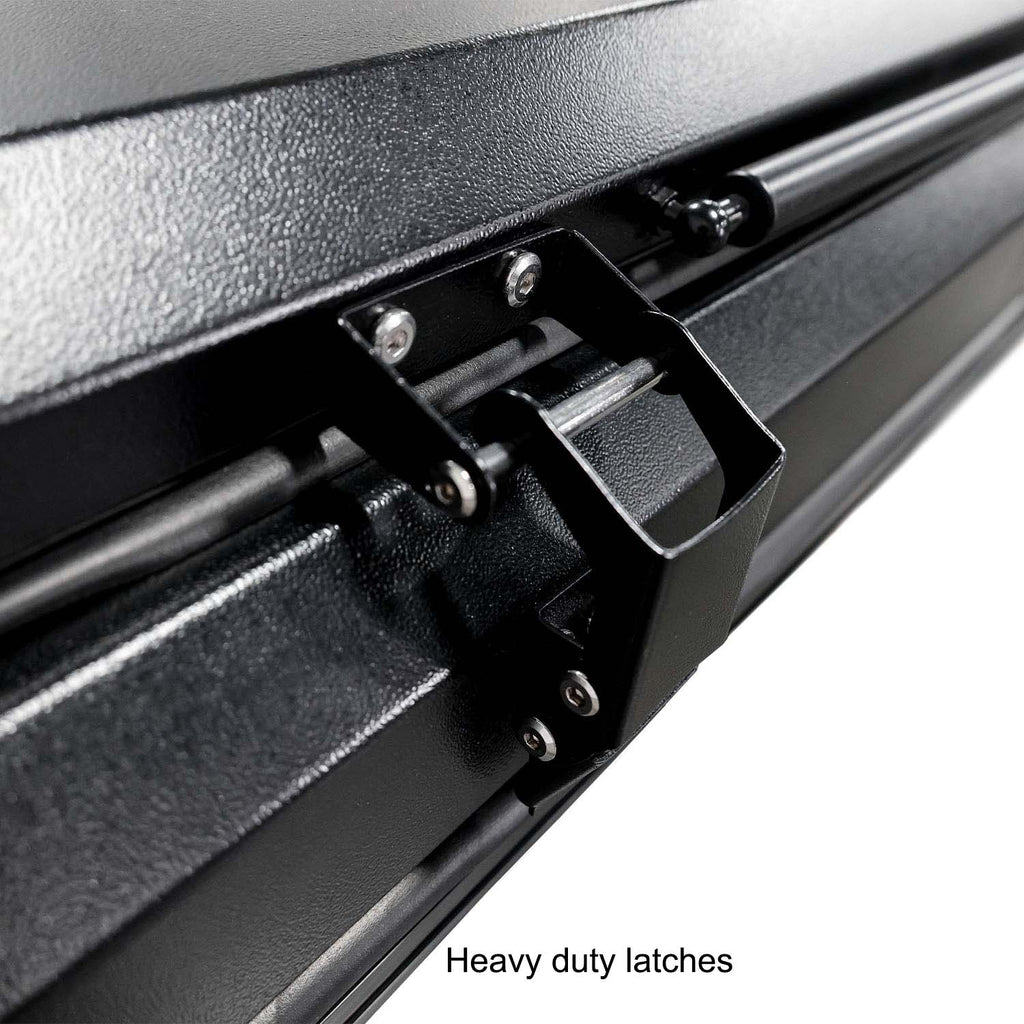

- Preinstalled ladder/bag brackets, keder track, ten closing latches, three main hinges, and upper roof hanger
Specifications
Style Z-Lift Clamshell
Shell 2mm Laser-Welded Aluminum
Base Aluminum Honeycomb
Sleeps 2 Adults

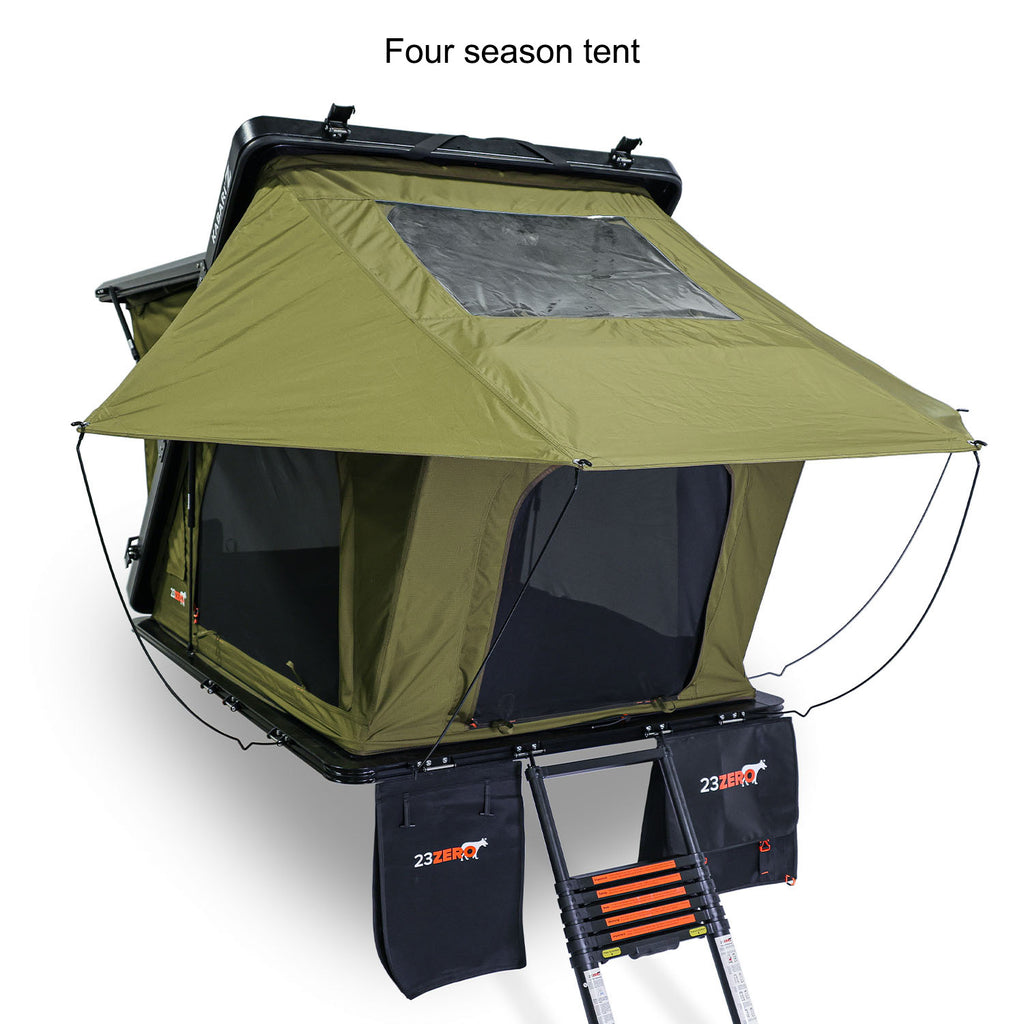

Seasons 4 Season
Mattress 2.4" Self-Inflating
Fabric ECO13B with LST
Heater/Cooler Ports Two, 5" Diameter
Rear Door/Window 23" W x 28" L
Side Doors/Windows 48" W x 36" L
Front Door/Window 32" W x 36" L
Moon Roof 32" W x 36" L
Triangular Side Windows 32" W x 17" L
Gear Loft 39" W x 12" L
Shoe Bag 18.75" W x 19" L
Gear Storage Bag 16" W x 22" L
Dimensions
Mounting Footprint 55.25" W x 86.625" L x 9.5" H

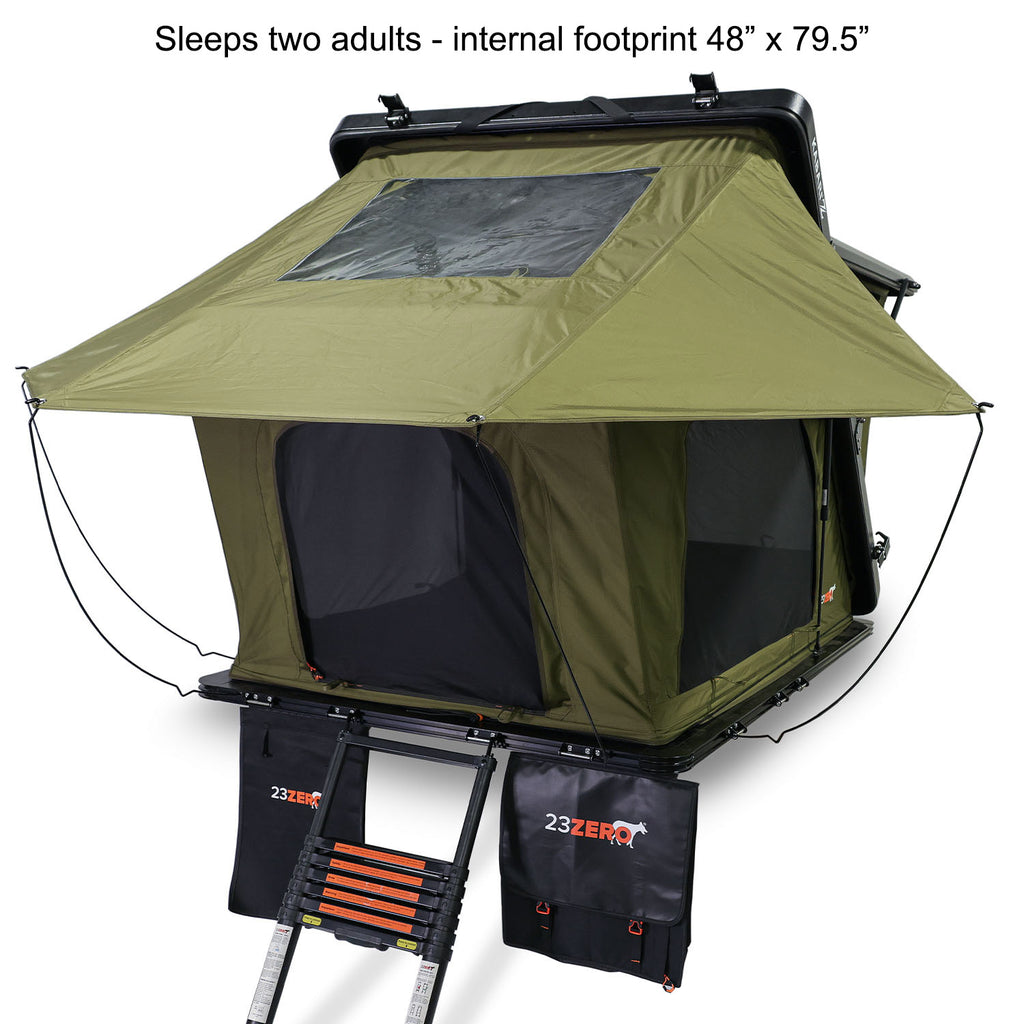

Sleeping Footprint 48" W x 79.5" L
Interior 48" W x 78" L x 58" H

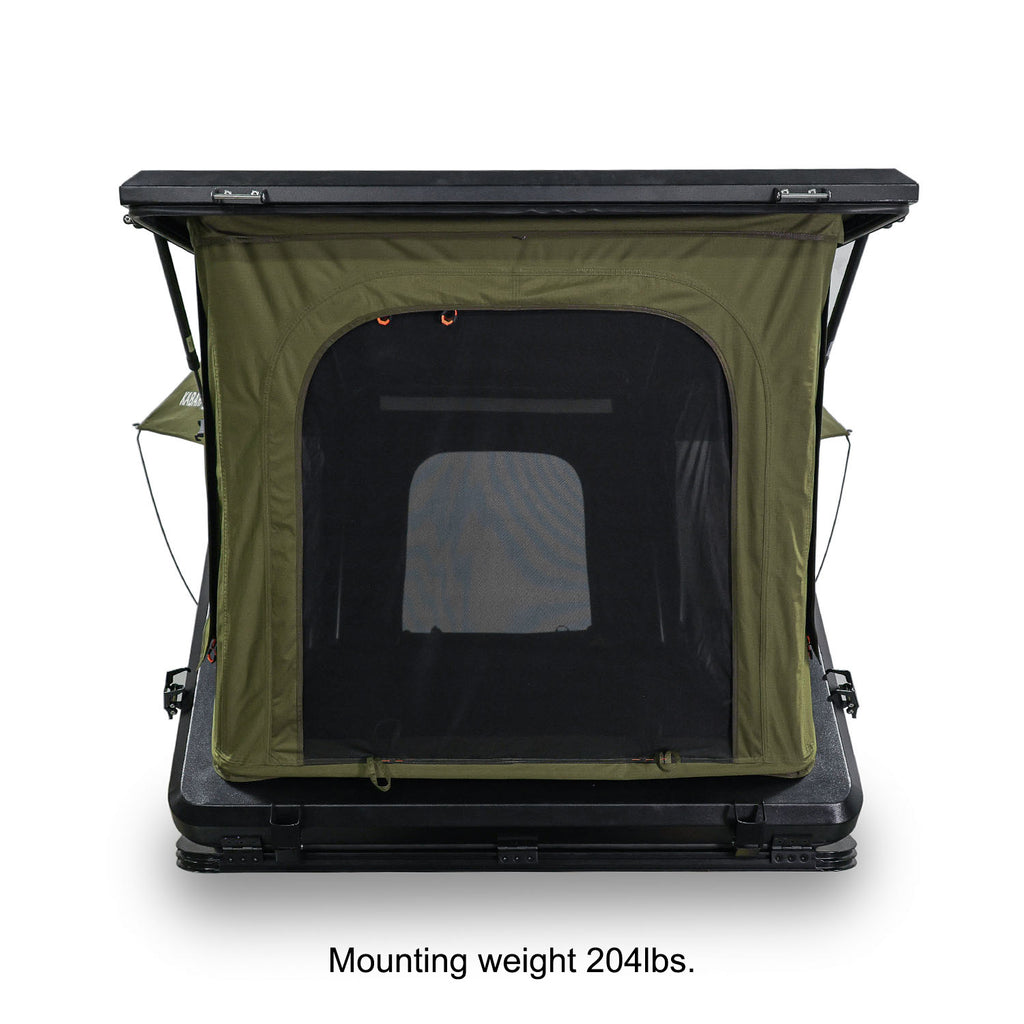

Mounting Weight 204 lb
Before You Install
- Confirm your vehicle's maximum roof load capacity with the vehicle manufacturer
- Confirm the load rating of your roof rack or bed rack, especially for off-road use
- Account for any other accessories already mounted on your roof or rack
