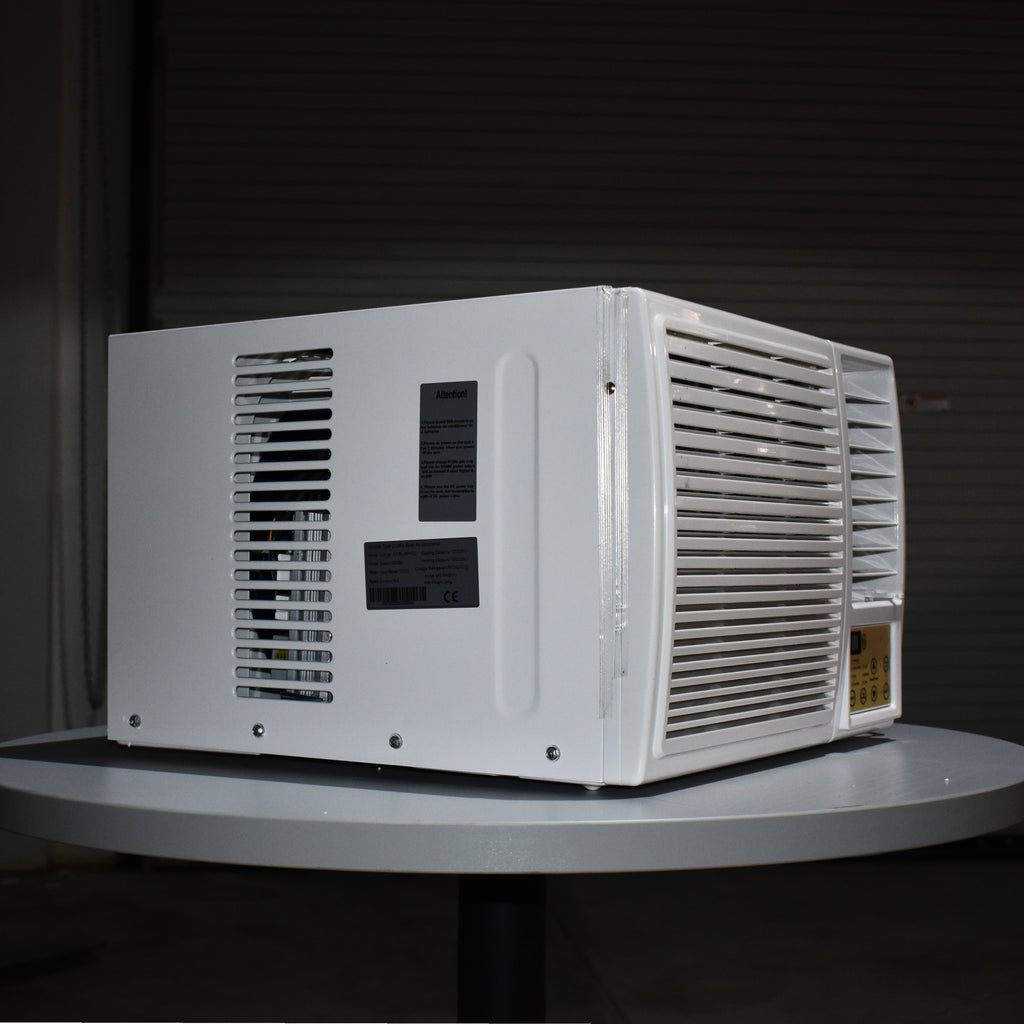

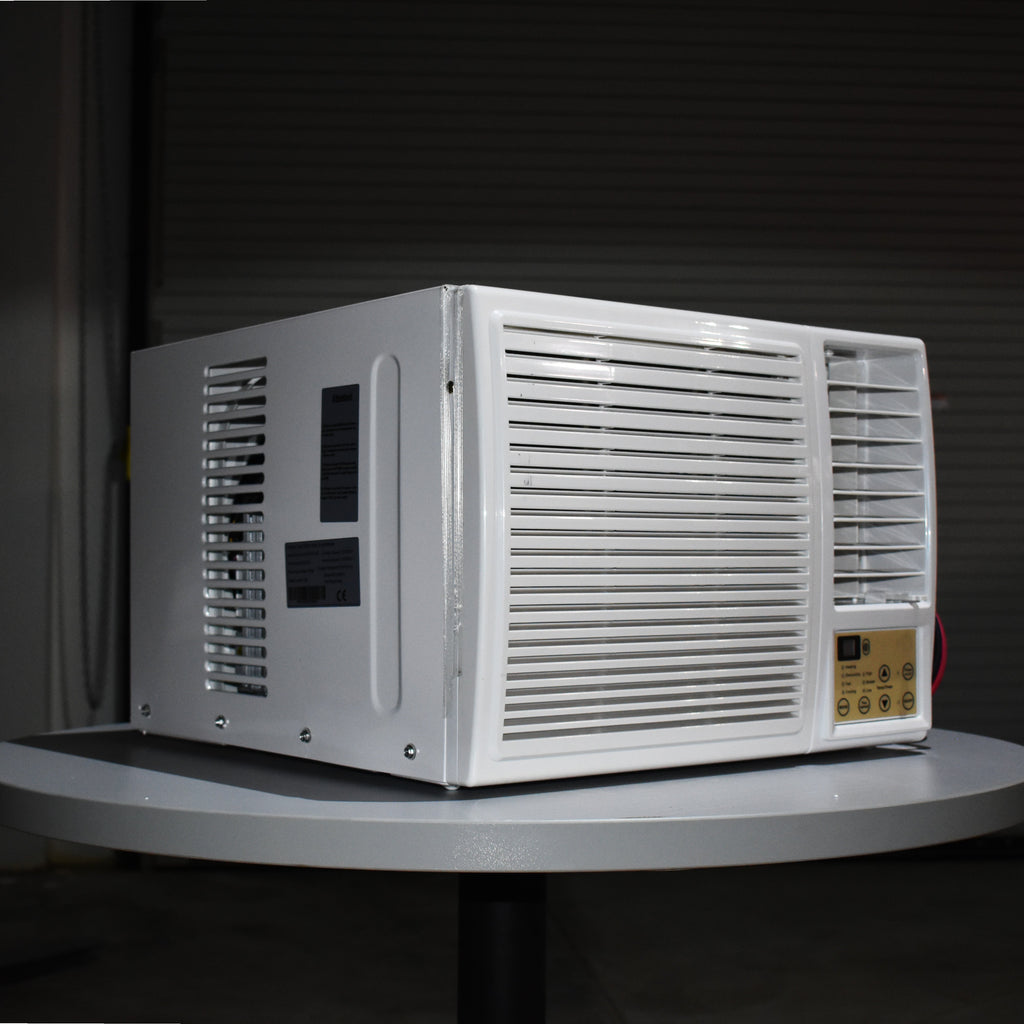

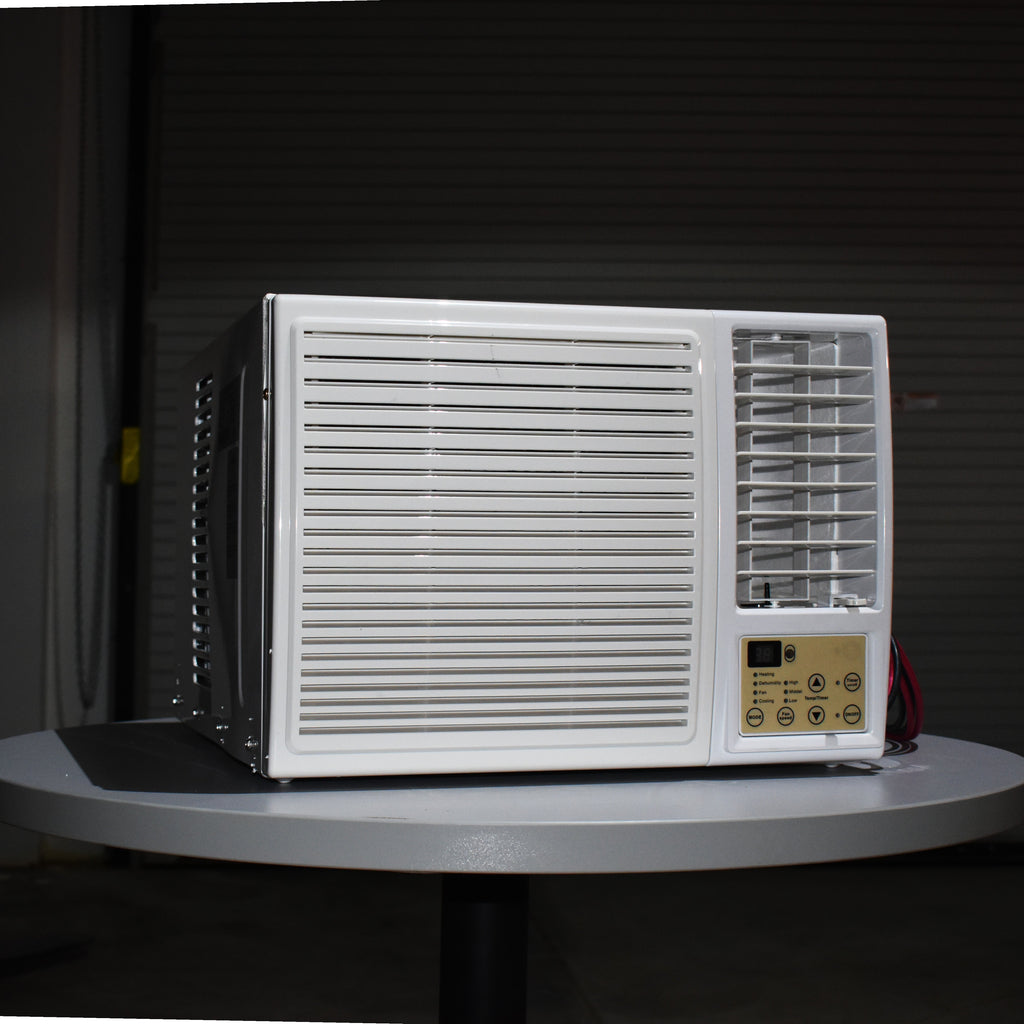

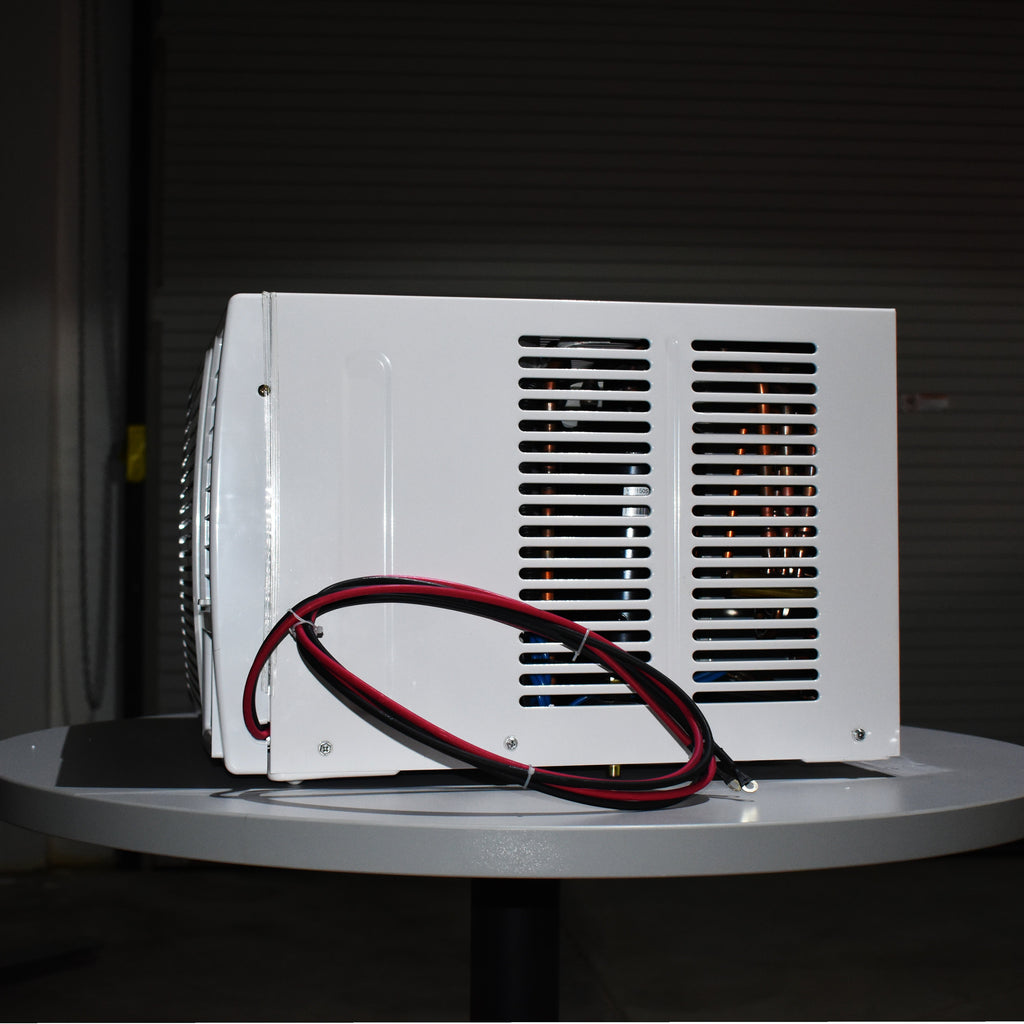

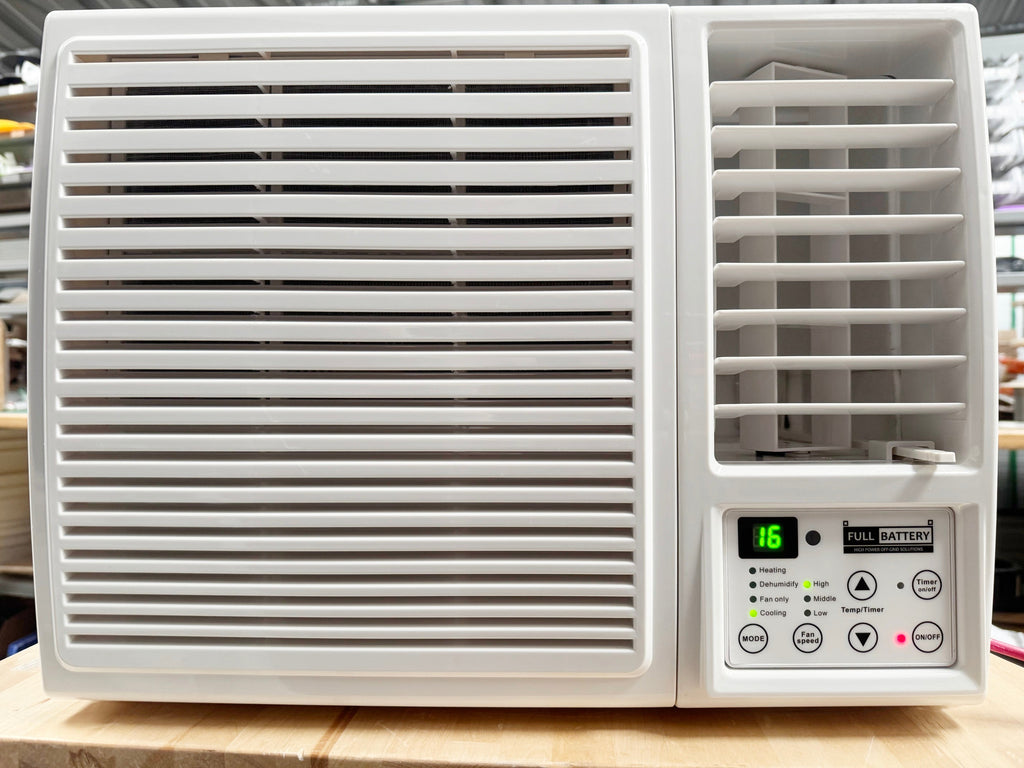

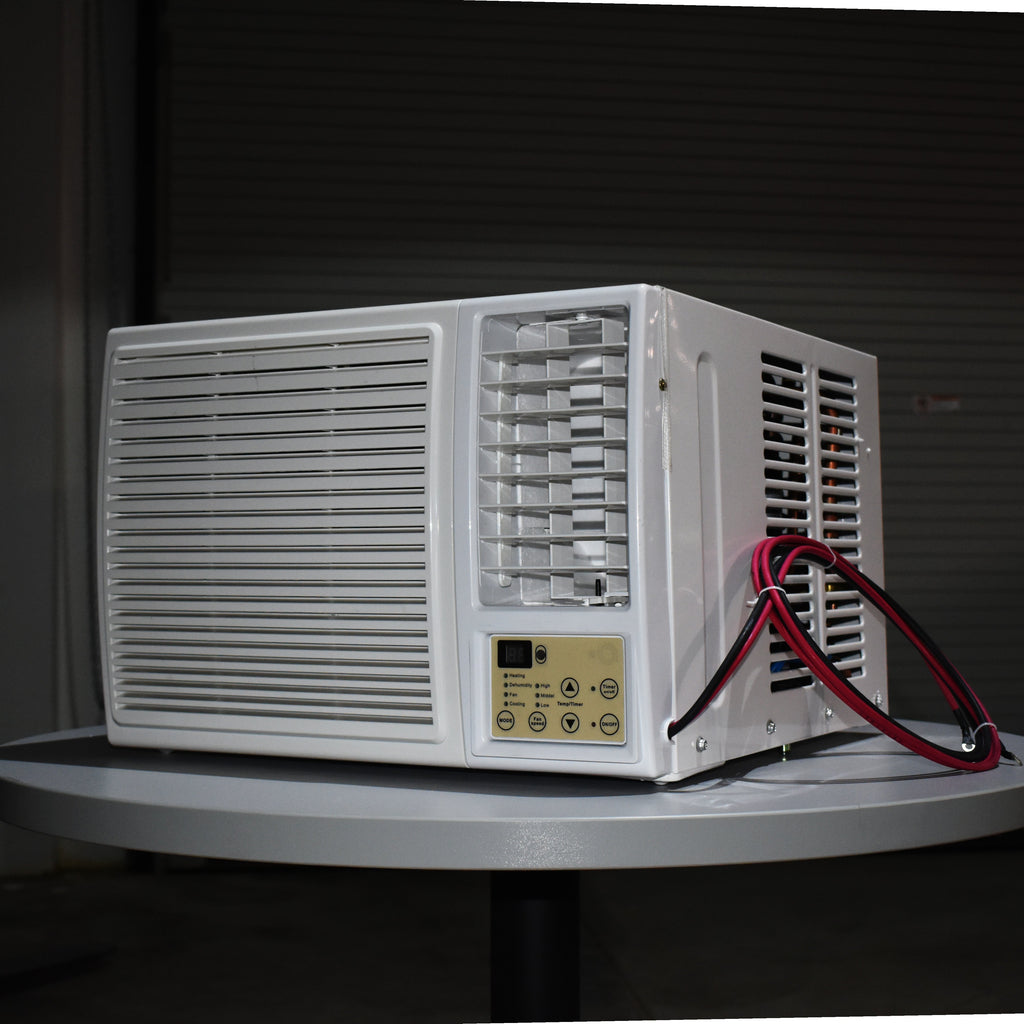

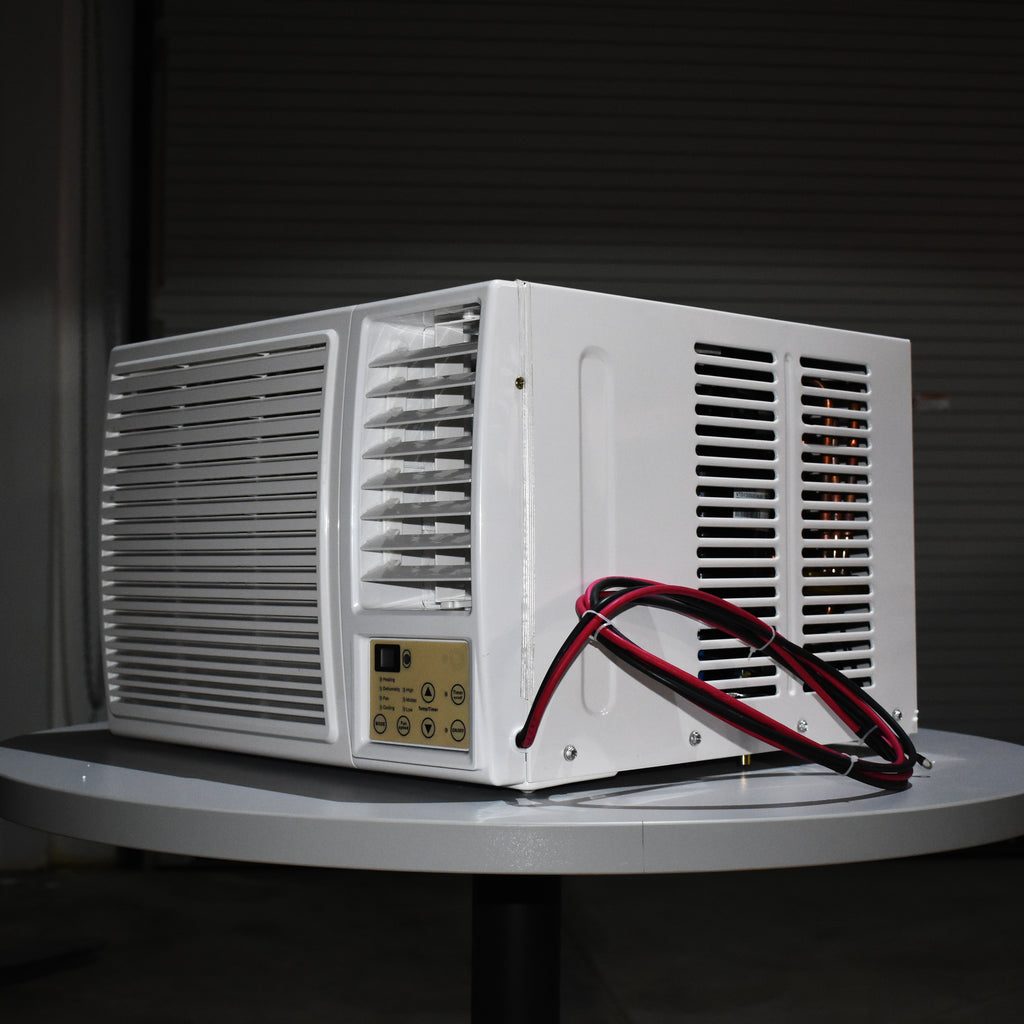

24V DC Window Unit Heat Pump
Powerful cooling and heating with exceptional efficiency. Wires directly to your 24-volt battery with no inverter required.
These window units only take 350-500 watts to run and operate directly from your 24-volt battery. The most cost-effective setup is wiring two car batteries in series for 24V operation. For a complete off-grid solution, you can choose a package with battery, solar panel, or charge controller for a fully self-contained system.
See the unit in your space: Check out the 3D model picture to visualize it in VR in your building.
About the Units
These 6,000 - 9,000 BTU/h window-unit heat pumps provide both cooling and heating. They’re:
- 5 times more efficient than electric heaters
- At least twice as efficient as 110V window AC units
- Effectively 3 times more efficient in an off-grid 24V system without an inverter
All internal parts are DC-native—this is "how it's done" if you're serious about the most efficient, reliable off-grid heat pump solution.
True 24-volt DC compressor and fans: No inverter required. This is the most efficient way to control your climate with a 24-volt power supply.
We also offer 24V and 48V air conditioners that reverse to heat pumps. Available configurations include portable units, window units, and mini-splits in 1-ton, 2-ton, and 3-ton ranges.
Shipping: All items are in stock and ship via UPS Ground. Shipping is included in the price. Delivery to Alaska, Hawaii, and Puerto Rico is available for an additional $250 shipping cost.
Specifications - 6,000 BTU/h Model
Performance | |
---|---|
Cooling Capacity | 6,000 BTU/h (1,700 Watts) |
Heating Capacity | 7,000 BTU/h (1900 Watts) |
Air Flow | 220 CFM |
EER | 4.88 W/W (15.79 BTU/h/W) |
Refrigerant | R-134A |
Compressor | Panasonic 24V DC |
Fans | 24V BLDC |
Heating Function | Yes |
Power Consumption | |
Rated Power Input | 350 W |
Rated Current | 14.6 A |
Input Voltage Range | DC 21-30 V |
Dimensions | |
Product Size | 20"D x 19"W x 13.25"H |
Shipping Size | 21.7 x 24.4 x 17.3 in |
Weight | |
Net | 68 lbs |
Gross | 73 lbs |
Specifications - 9,000 BTU/h Model
Performance | |
---|---|
Cooling Capacity | 9,000 BTU/h (2,500 Watts) |
Heating Capacity | 10,000 BTU/h (2800 Watts) |
Air Flow | 230 CFM |
EER | 4.88 W/W (15.79 BTU/h/W) |
Refrigerant | R-134A |
Compressor | Panasonic 24V DC |
Fans | 24V BLDC |
Heating Function | Yes |
Power Consumption | |
Rated Power Input | 500 W |
Rated Current | 22 A |
Input Voltage Range | DC 21-30 V |
Dimensions | |
Product Size | 20"D x 19"W x 13.25"H |
Shipping Size | 21.7 x 24.4 x 17.3 in |
Weight | |
Net | 68 lbs |
Gross | 73 lbs |
