24V Roof-Mounted Air Conditioner
Ready to use right out of the box—just wire it to your 24-volt battery for the highest efficiency pure-DC cooling with no need for an inverter or 110V AC supply.
Automatic low-battery protection turns off the unit when your battery reaches the customizable low-voltage setpoint, preserving power to start your engine or keep other essential systems running.
Perfect for retrofitting minivans, tractor trailers, small sheds, outdoor utility cabinets—anywhere you need reliable, battery-powered rooftop cooling. Every unit is filled, tested, and ready to use immediately. Just cut a hole or use an existing skylight opening in your roof for easy installation and instant cooling.
2 Models to Choose From

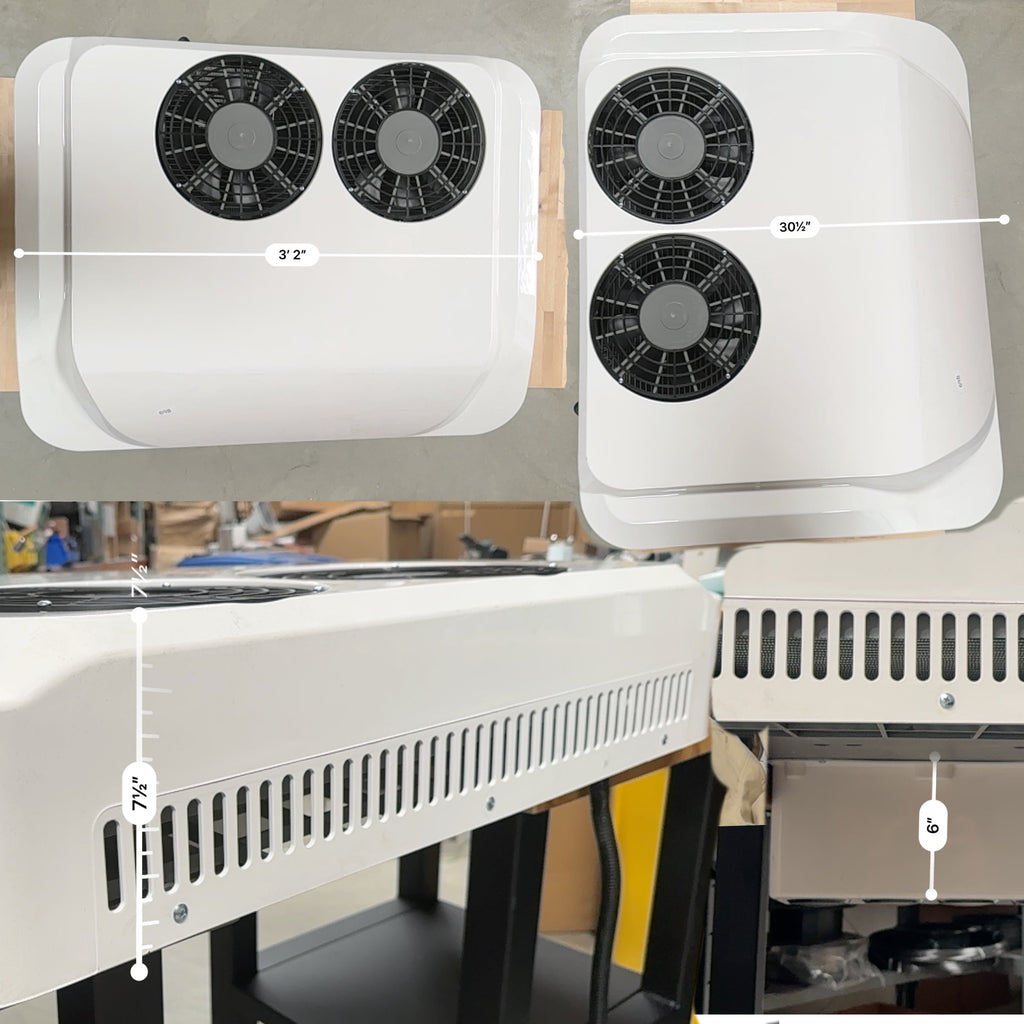

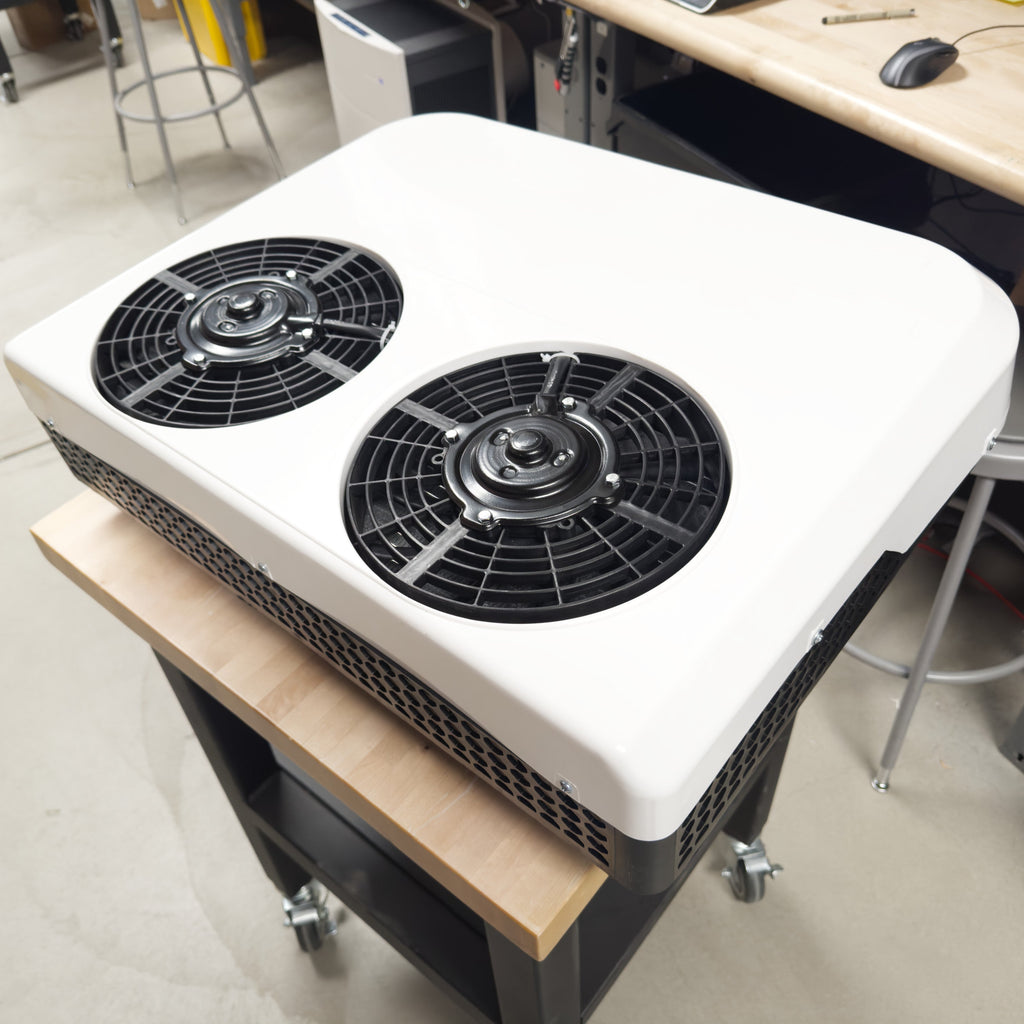

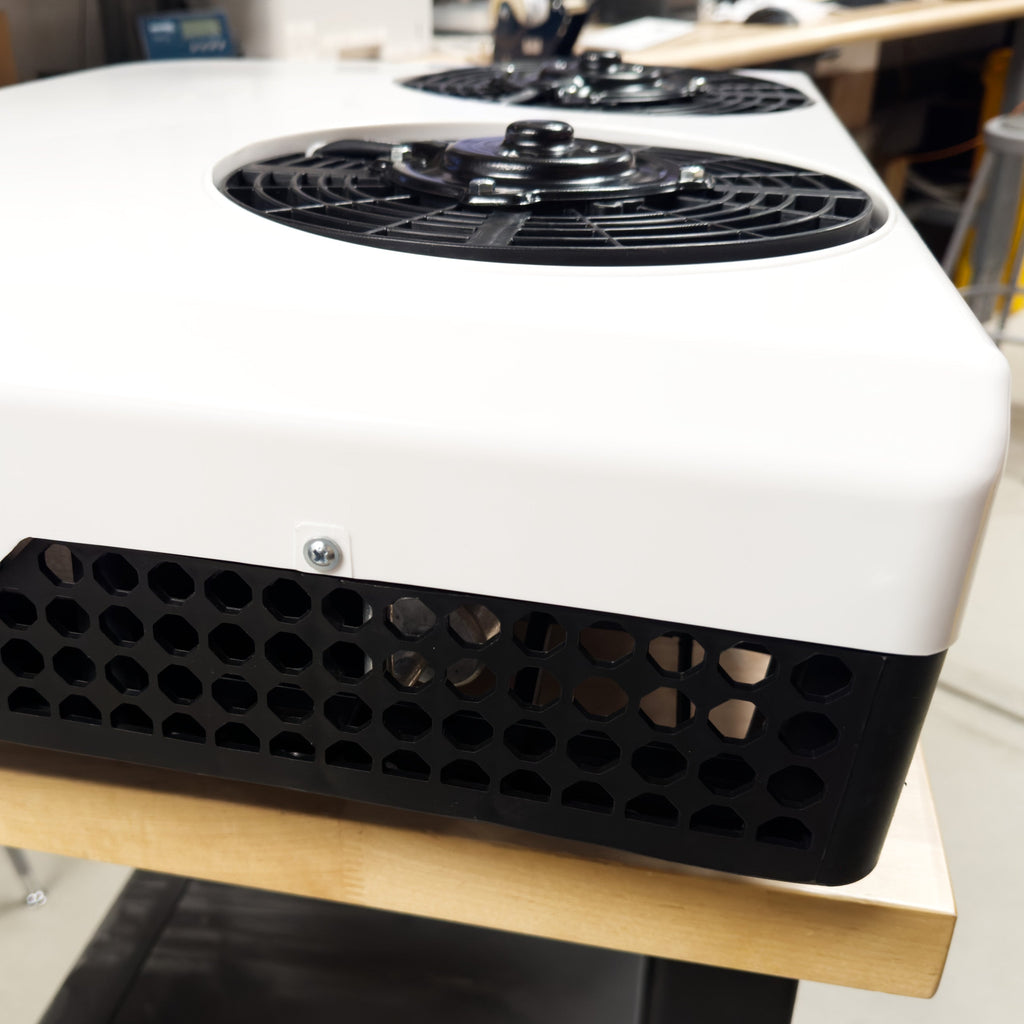

Dual Fan Model – 8,200 BTU/h
| Specifications | |
|---|---|
| Rated Voltage | 24V DC |
| Rated Current | 55 A |
| Rated Power | 850 W |
| Rated Cooling Capacity | 2,400 W (8,200 BTU/h) |
| Refrigerant | R-134a (500g) |
| Refrigeration Oil | PAG68 / 100ml |
| Air Volume | 150-450 m³/h |
The Dual Fan model features an efficient convective design with upward air movement for consistent, even cooling.
Dual Turbine Model – 10,000 BTU/h
| Specifications | |
|---|---|
| Rated Voltage | 24V DC |
| Rated Current | 65 A |
| Rated Power | 1100 W |
| Rated Cooling Capacity | 2,900 W (10,000 BTU/h) |
| Refrigerant | R-134a (550-600g) |
| Refrigeration Oil | PAG68 / 120ml |
| Air Volume | 150-450 m³/h |
The Dual Turbine model uses a centrifugal blower fan that draws air from the side and delivers a strong rear-directed stream, leaving the top hood completely covered for a sleek, functional design.
