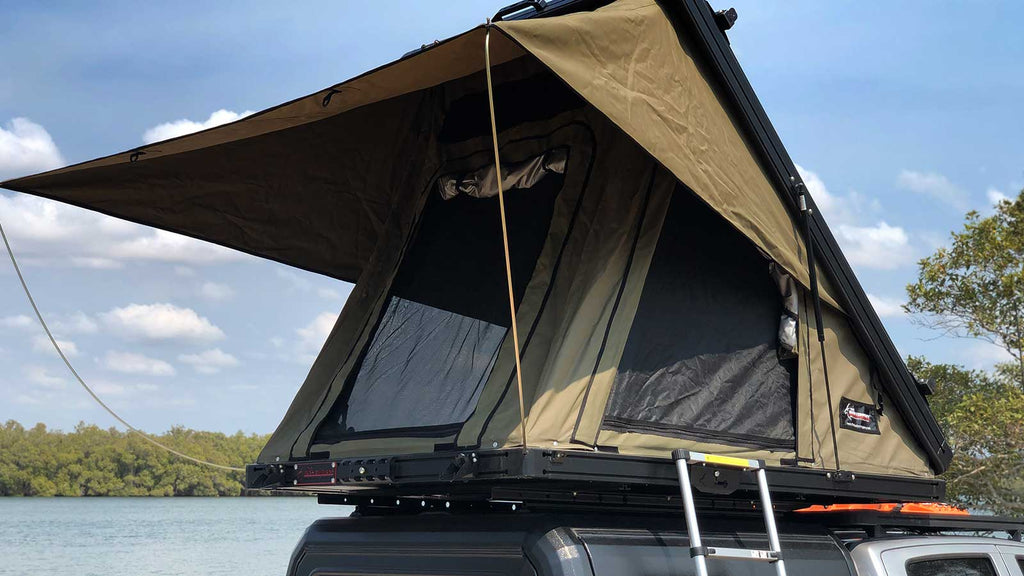

Overview

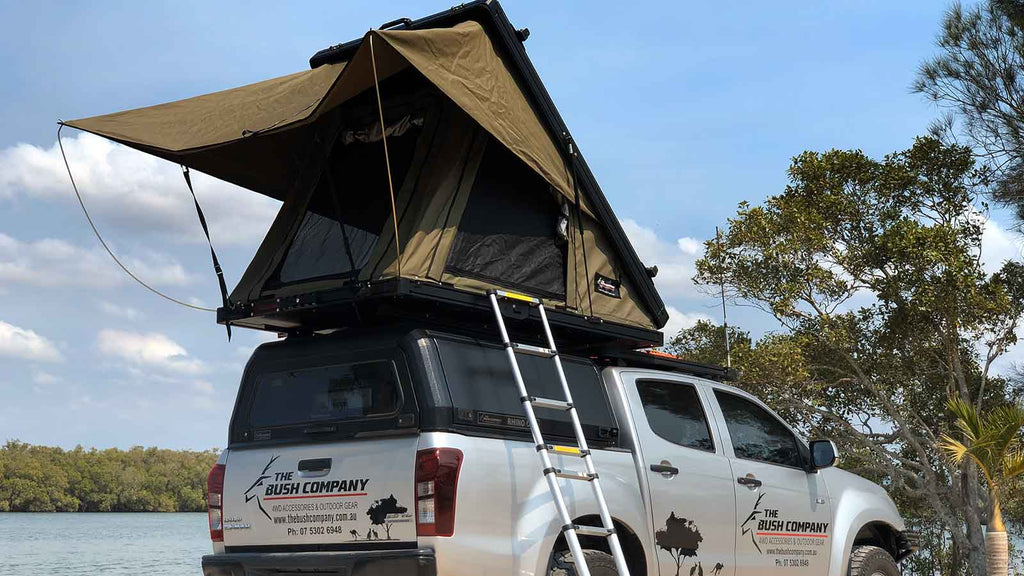

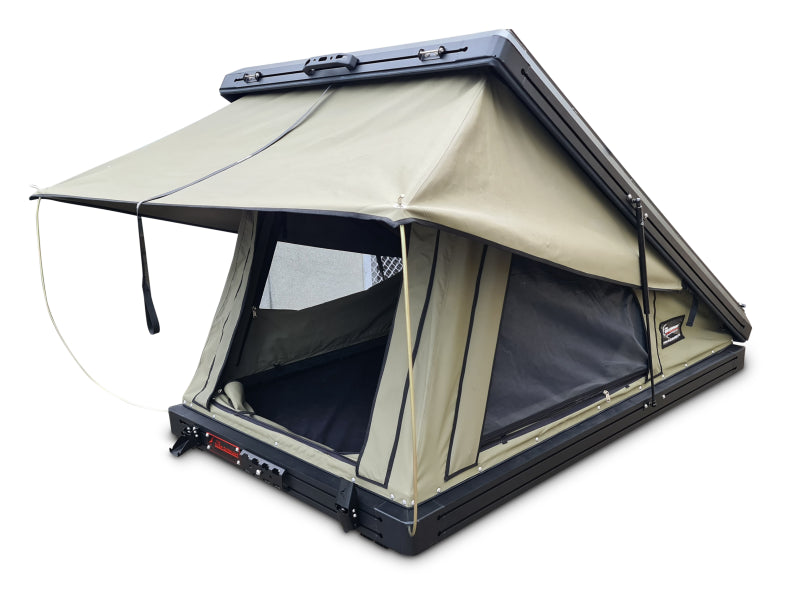

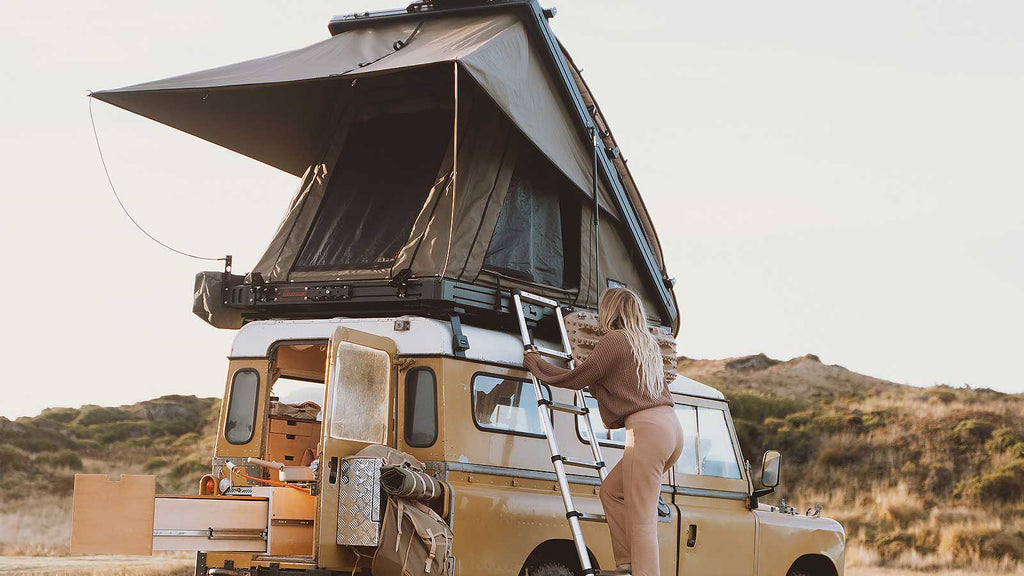

The AX27 Clamshell Rooftop Tent is the ultimate camping solution that will exceed your expectations, thanks to The Bush Company’s extensive experience in aluminum fabrication and touring/camping.
The robust clamshell design is super fast to set up/pack down and provides a roomy internal space for easy access and maximum comfort, making it perfect for a luxurious camping experience.
Made from top-quality materials that can endure the toughest of weather conditions, the AX27 Clamshell Rooftop Tent will offer you an unforgettable camping time that will leave you feeling confident that you have made the right choice.
This product features a fully seam welded lightweight alloy frame with a high quality powder coated finish. The 2m long cargo rails are welded to the top of the roof, making it easy to attach accessories or the optional roof load bars. The internally reinforced roof is load rated to 200Kg when closed, or 50kg when open.
The tent body is made of two layers of 310g polyester rip stop acrylic infused mold and mildew resistant canvas. A large canvas removable rainfly is located at the rear and sides of the tent with heavy duty 8mm spring steel poles and adjustable storm straps for heavier wind conditions.
There is an air vent above the rear entrance with midge mesh and zipped canvas flap on the inside. Additionally, the base and top frame feature ‘Ezi-Slots’ that provide an easy attachment of accessories such as awnings, hi-lift jacks, light bars etc. Finally, the tent has three entry points; rear, left and right sides all with YKK zippers and external canvas storm door with high quality midge mesh and internal canvas door.
Sleeping and Storage

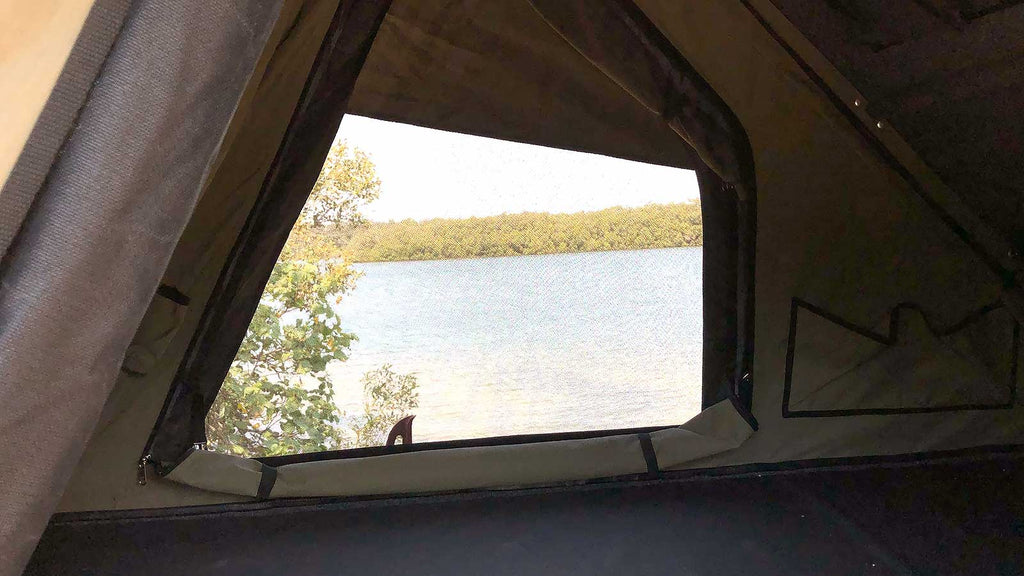

You’re in for a treat with the AX27 – an effortlessly spacious rooftop tent that holds all the comforts of home, and then some. With three sizeable windows/doors, all with double canvas doors and midge mesh, natural light and ventilation are in ample supply.
The mattress, layered with medium and super density foam that’s a plush 80mm/3.15″ deep, is topped with a removable canvas cover for easy care. And the tent’s interior? Wide enough to accommodate two sleepers with additional room to spare – so feel free to bring all the bedding and extras your heart desires.
With the AX27, storage won’t be an issue: storage pouches and pockets are abundant, accompanied by thoughtful touches like water bottle holders. Camping just got a serious upgrade thanks to the AX27.
Accessories and Electrics
With our top-of-the-line tent, you can take on any adventure with confidence. Load up your gear, from surfboards to kayaks, on the roof of the tent without worry.
Whether you’re off the grid for days or just need a quick power boost, mount solar panels to the roof and keep all your devices charged with the multiple power sockets and USB ports inside the tent. The tent’s power connection is easy to access, thanks to the 50amp Anderson plug on the underside of the tent base. And don’t forget the tr-color rechargeable LED light that can be positioned anywhere on the roof for optimal lighting.

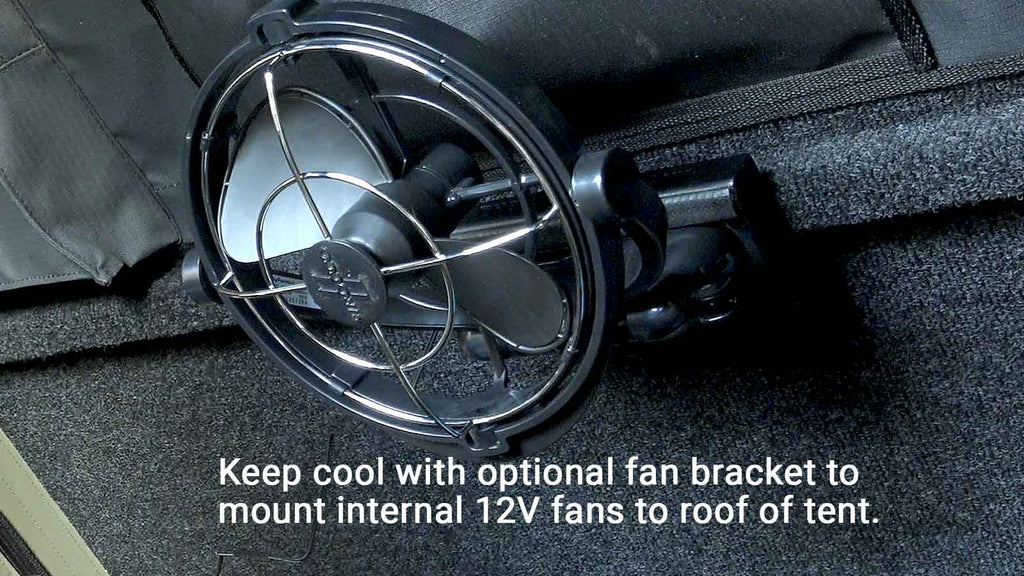

With the optional fan mount bracket, you can even add a 12V Scirocco fan to enhance your comfort. The tent’s accessory brackets make it easy to carry shovels, hi-lift jacks, and lightbar/spot light brackets, ensuring you’re always equipped for your next adventure.
AX27 Clamshell Roof Top Tent – Product Specifications
- External Length: External Frame 2.25m /7′ 4.6″ (2.32m / 7′ 7″ hinges & handles)
- External Width: External 1.4m (4′ 7.1″), 1.45m (4′ 9″) including gas struts
- Height (exterior, closed): 278mm (10.94″) including roof rails and base extrusions
- Max Height (exterior, open): 1.75m (5′ 9″)
- Max Height (interior, headroom open): 1.7m (5′ 7″)
- Internal Mattress: Length 2.13m / 7′, Width 1.28m / 4′ 2″, Thickness 80mm / 3.15″
- Weight: Approximately 99kg (218lbs) excluding telescopic ladder
- Universal fitting kit/brackets included with tent.

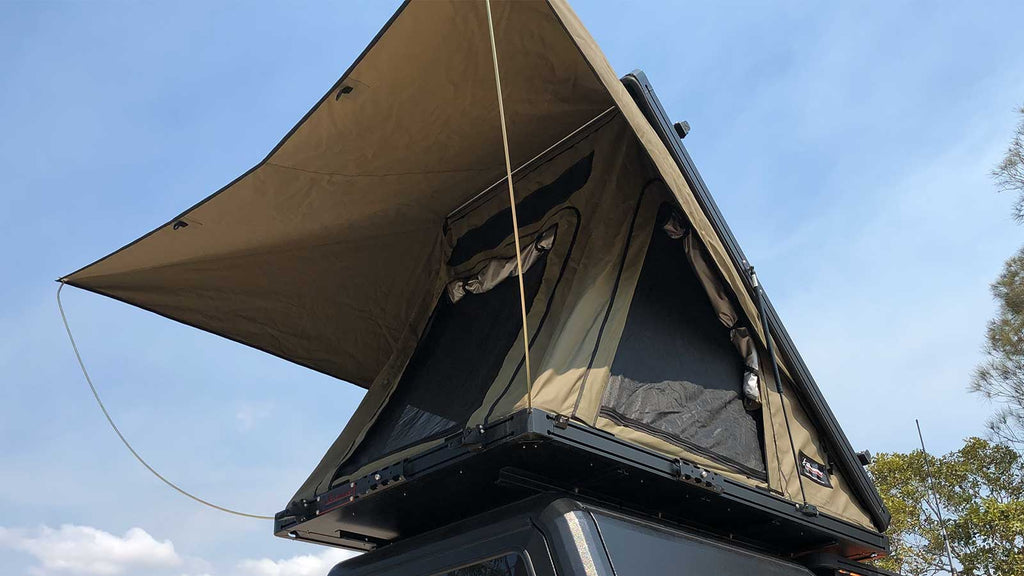

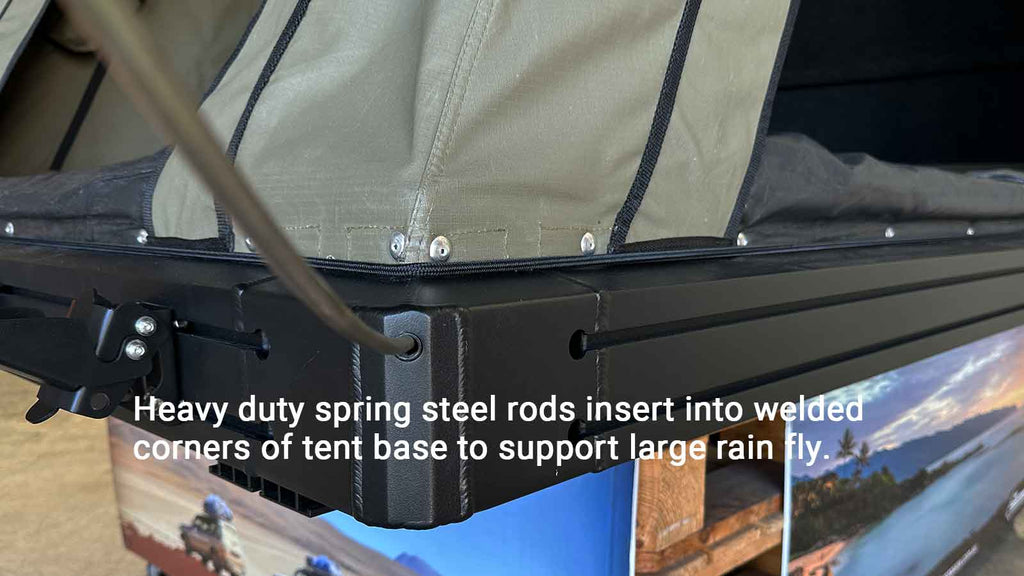

- Large canvas removable one piece rainfly at rear and sides of the tent with heavy duty 8mm spring steel poles and adjustable storm straps for heavier wind conditions.

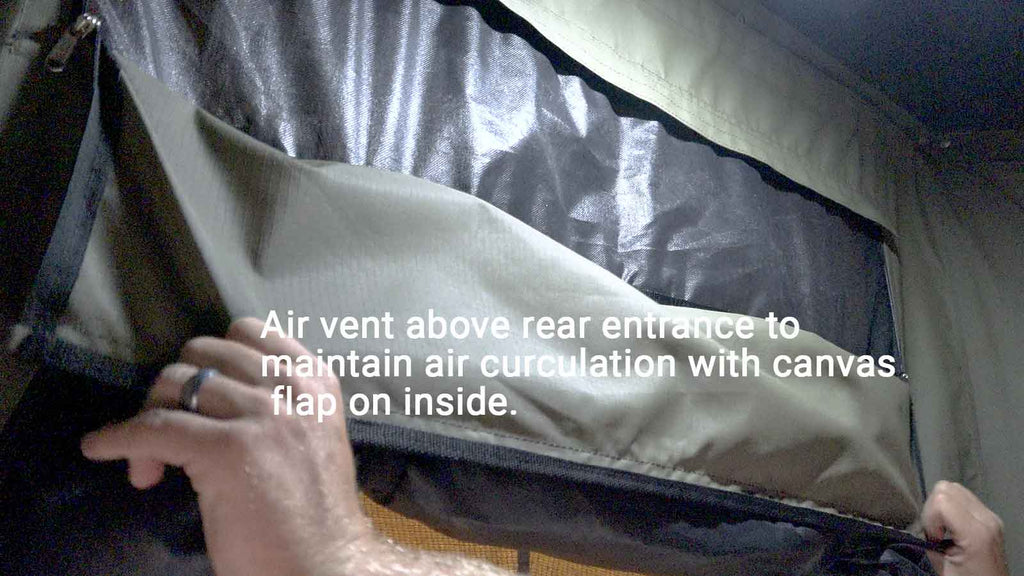

- Air vent above rear entrance with midge mesh and zipped canvas flap on inside.
- Fully seam welded lightweight alloy frame with high quality powder coated finish.

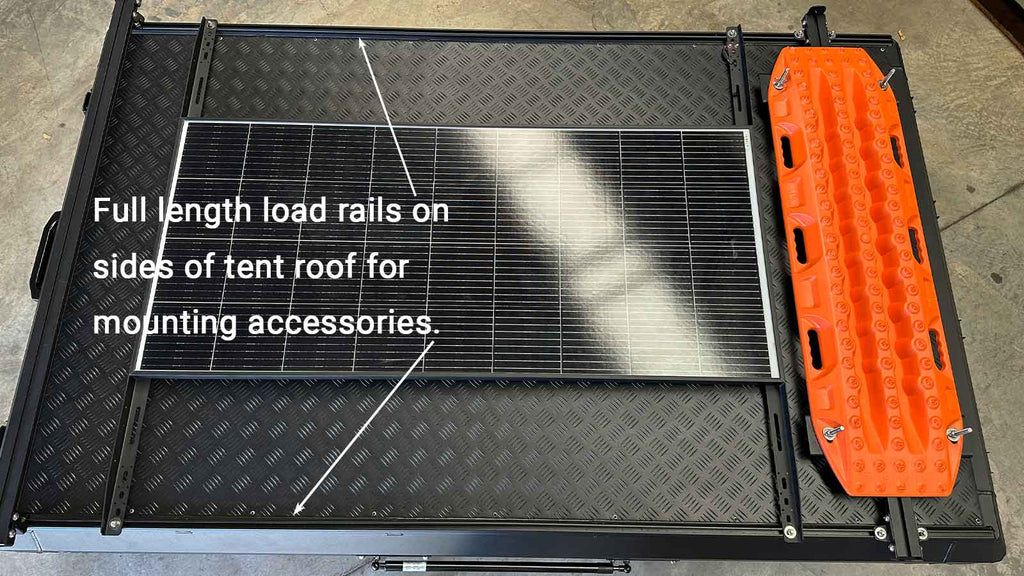

- 2m (6′ 6.7″) long cargo rails welded to the top of the roof, suitable for attaching accessories or the optional roof load bars .
- Internally reinforced roof, load rated to 200Kg (440lbs) when roof closed, or 50kg (110 lbs) when open.
- ‘Ezi-Slots’ extruded into the sides of base and top frame for easy attachment of accessories such as awnings, hi-lift jacks, light bars etc.
- Two layers of 310g/9,2oz (+/- 10%) polyester rip stop acrylic infused mold and mildew resistant canvas on body of tent.

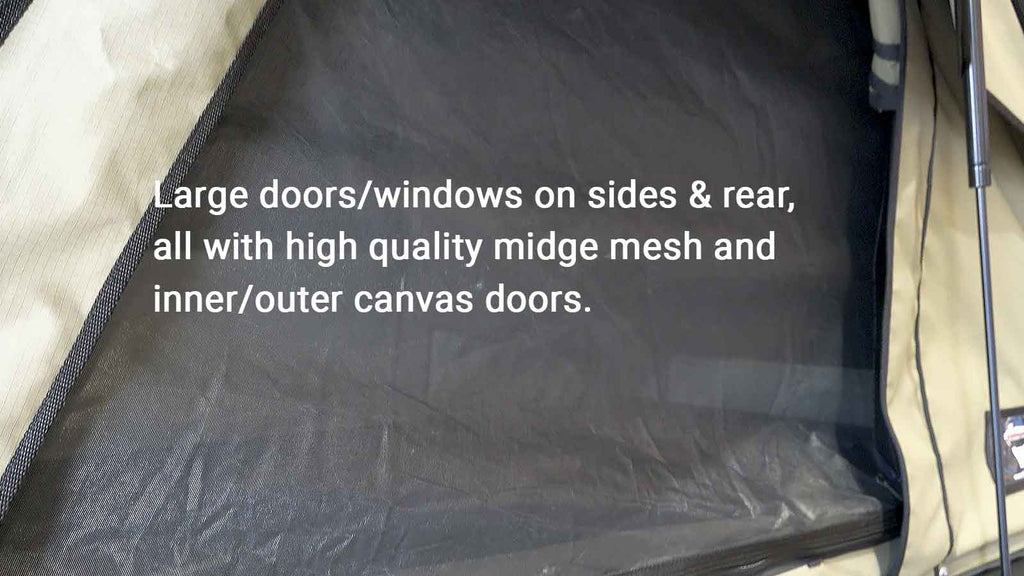

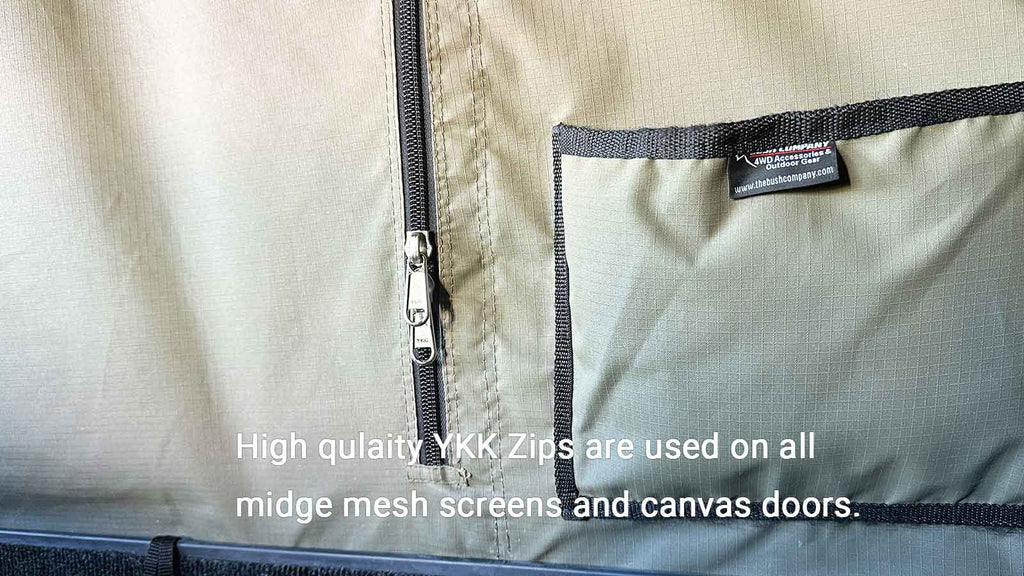

- Three layers at entry points all with YKK zippers: external canvas storm door, high quality midge mesh and internal canvas door.
- Three entry point to tent, rear, left and right side.

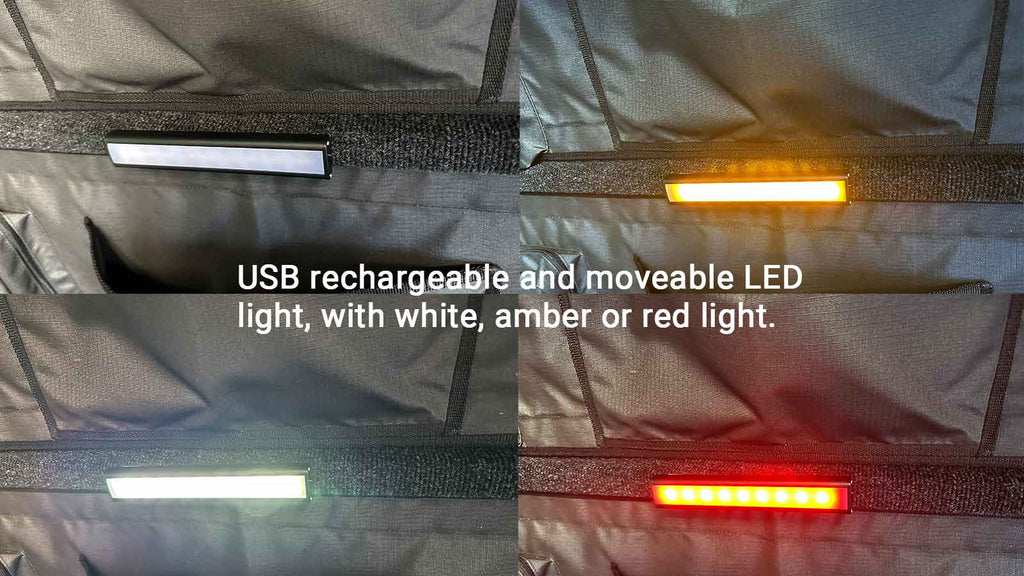

- Internal movable battery powered LED light (shines white, yellow or red).

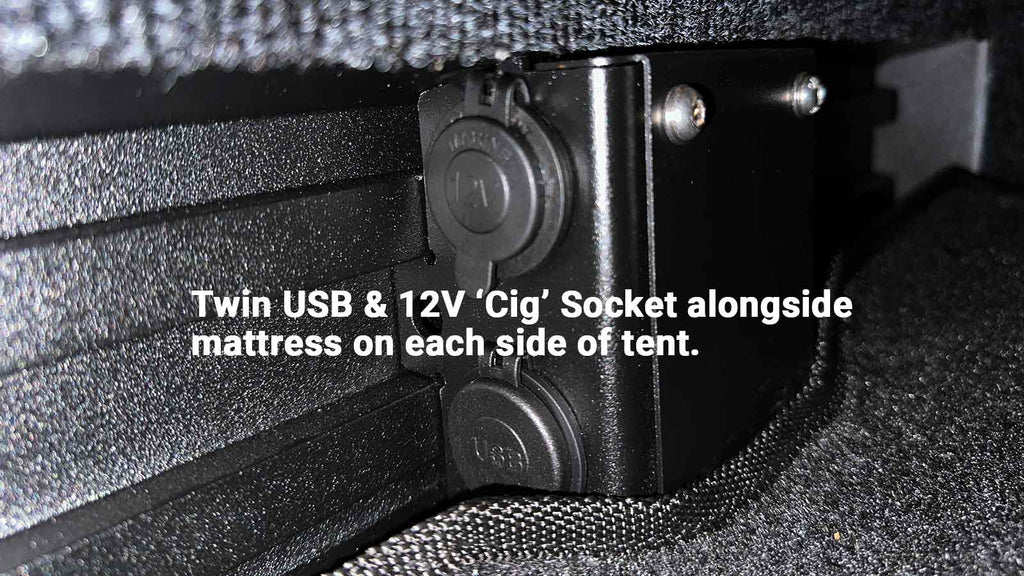

- Two sets of electrical sockets each with twin USB, CIG Socket plug, mounted to internal roof, with resettable thermal fuse.

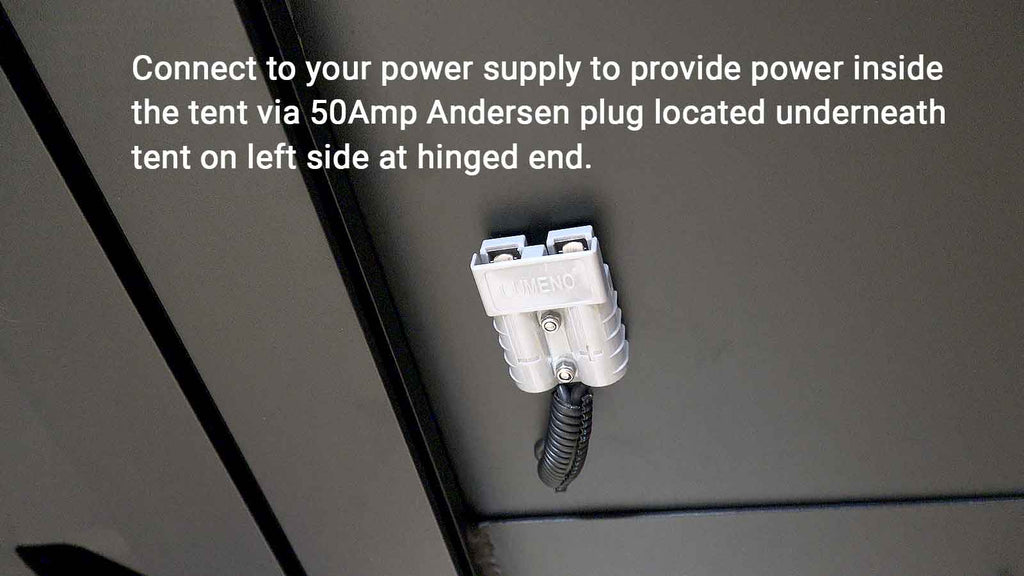

- External 50 amp Andersen plug mounted to underside of tent at hinged end on left side for connection to vehicles power.
- 12cm / 4.7″ of storage space above mattress when tent closed, so plenty of room for bedding, pillow, fishing rods, rifles etc.

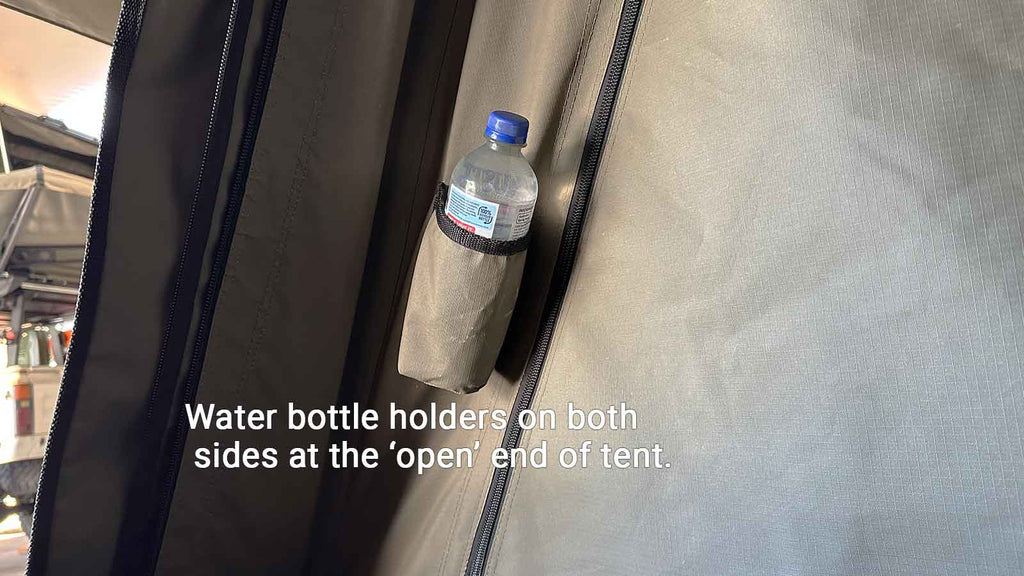

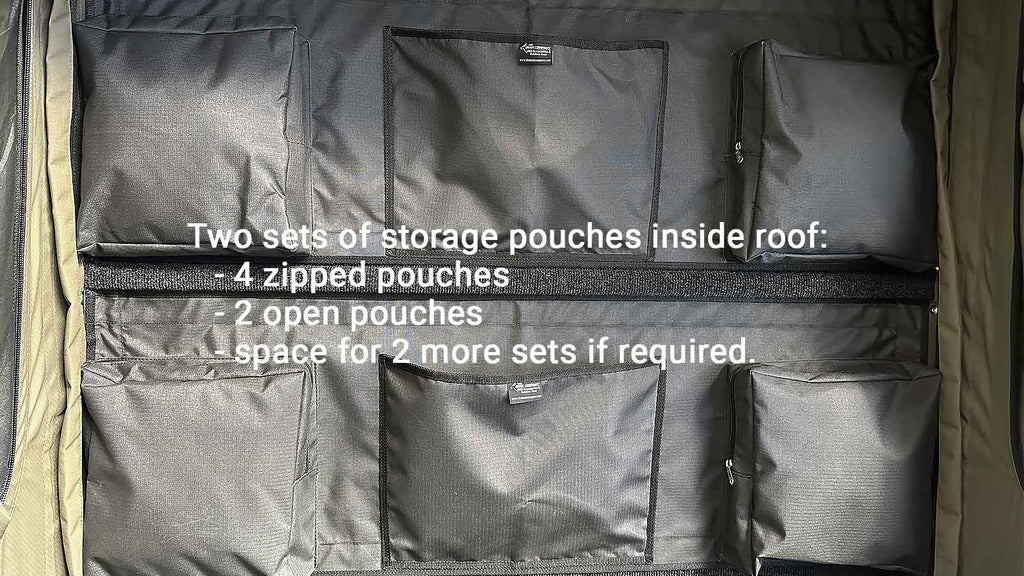

- 6 storage pouches on inside of roof, 2 large pouches on each side at hinged end and convenient water bottle pockets on each side at open end.

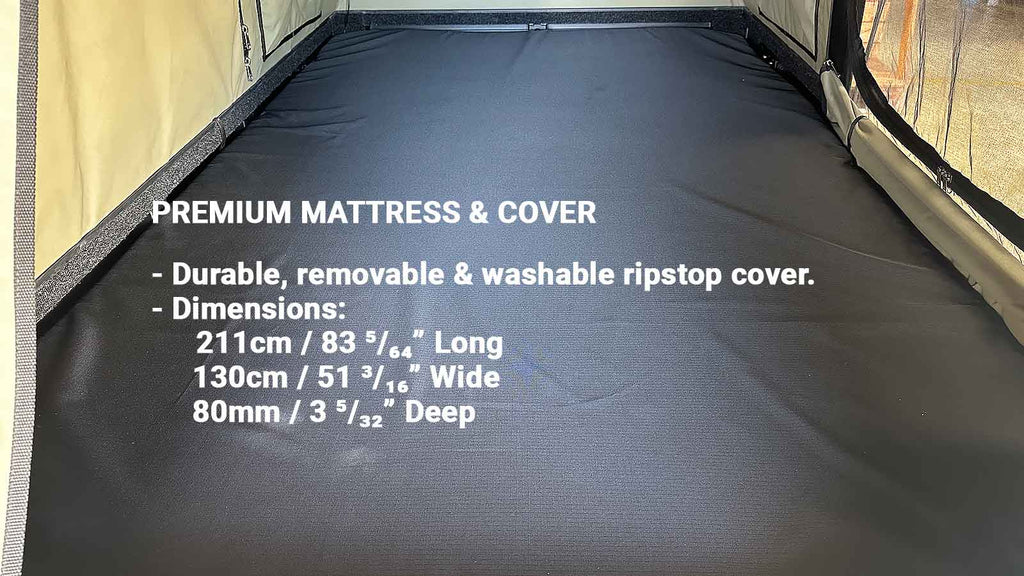

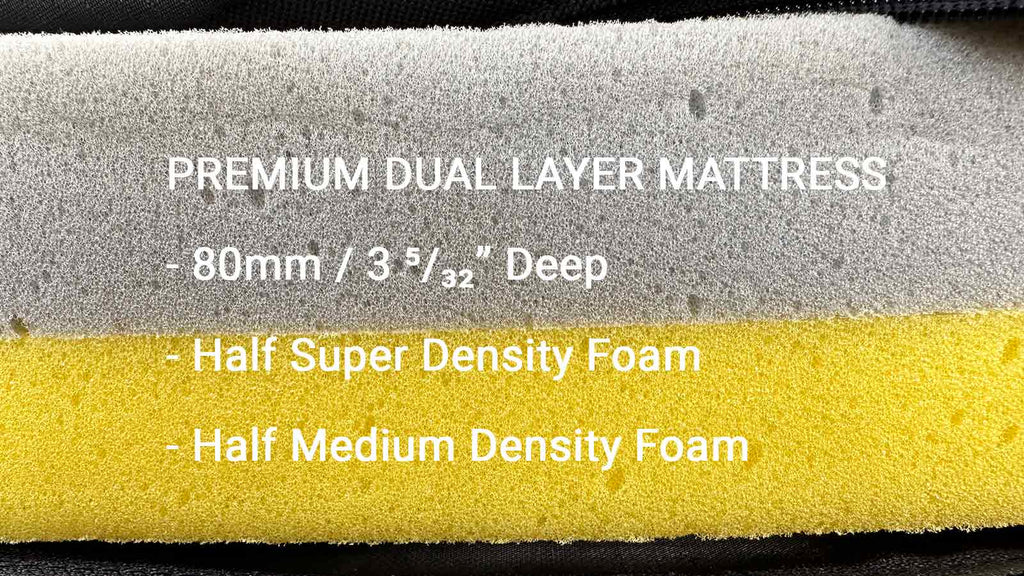

- 80mm / 3.15″ thick mattress, split half super high density and half medium density with removable zipped canvas cover.

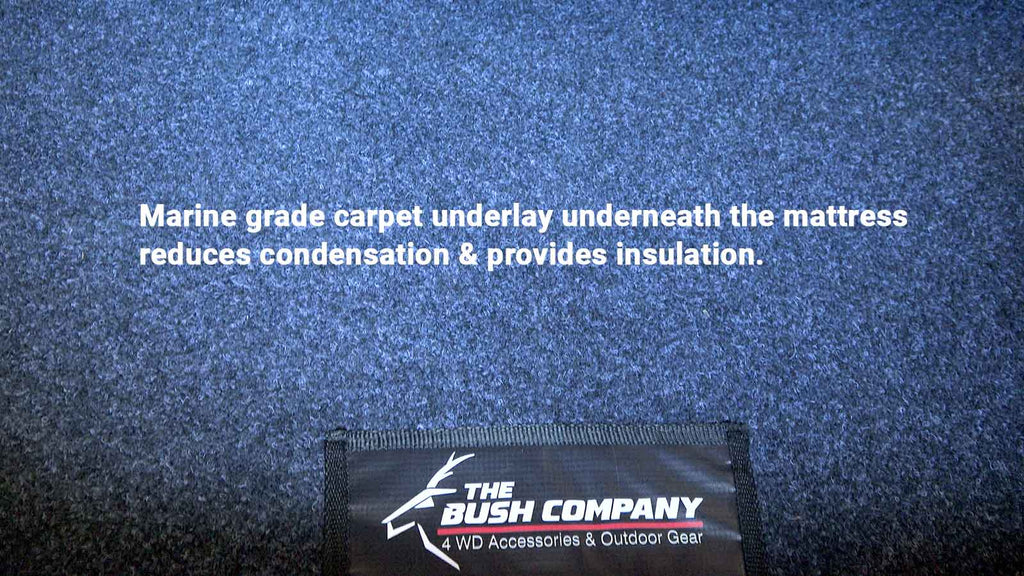

- Thermal marine carpet underneath mattress and carpeted internal roof liner.

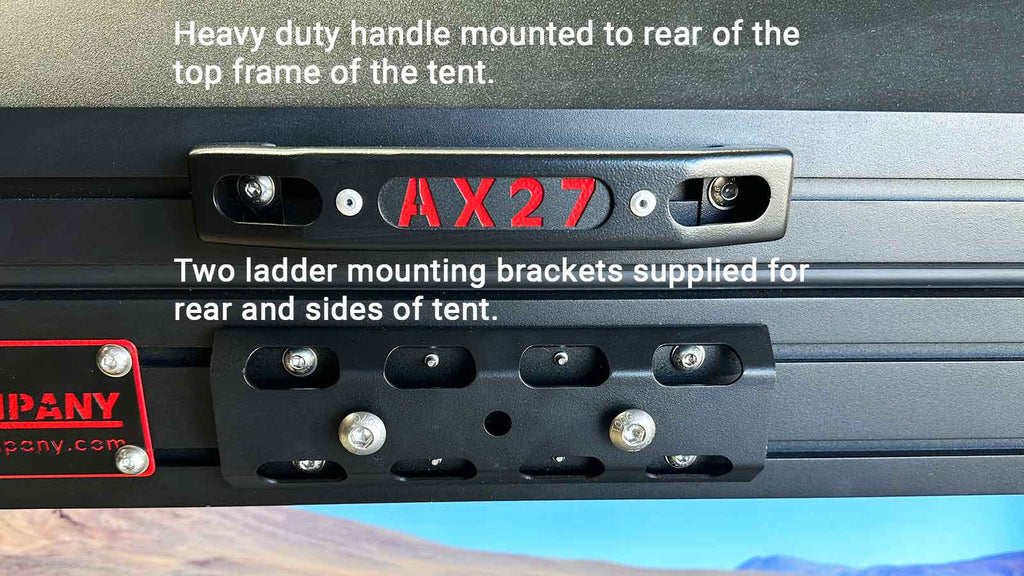

- Telescopic 2.6m / 8′ 4.3″ aluminum ladder with attachment points at rear and sides of tent, supplied in canvas storage bag.

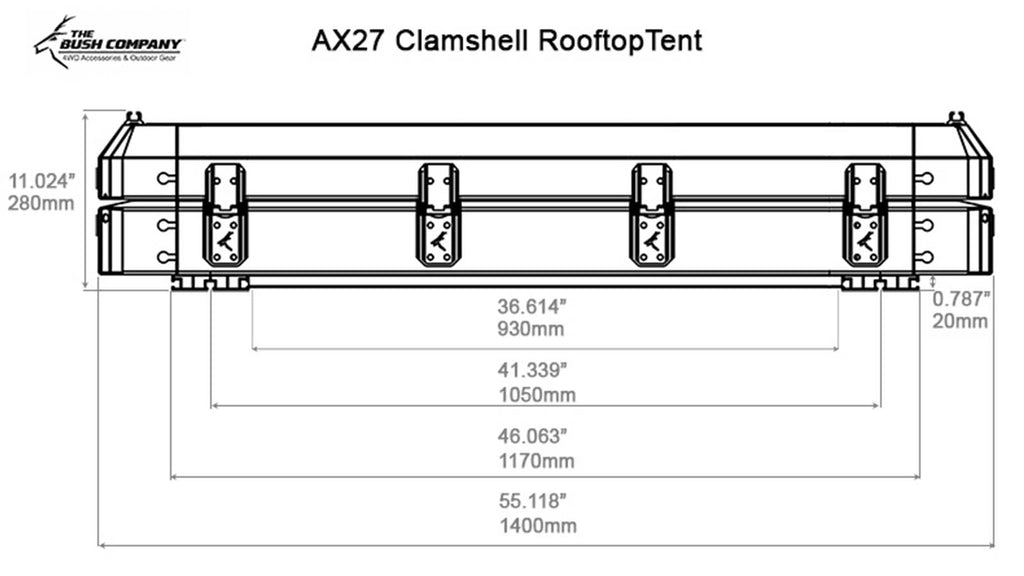

- Two heavy duty 20mm / 0.8″ high aluminum extruded foot rails underneath tent with M8 slots on sides and base for easy mounting, set 1050mm / 41.34″ apart center to centers joined by multiple 25mm thick sections of welded box tubing for additional strength and floor support.
- 2 Year conditional warranty.
