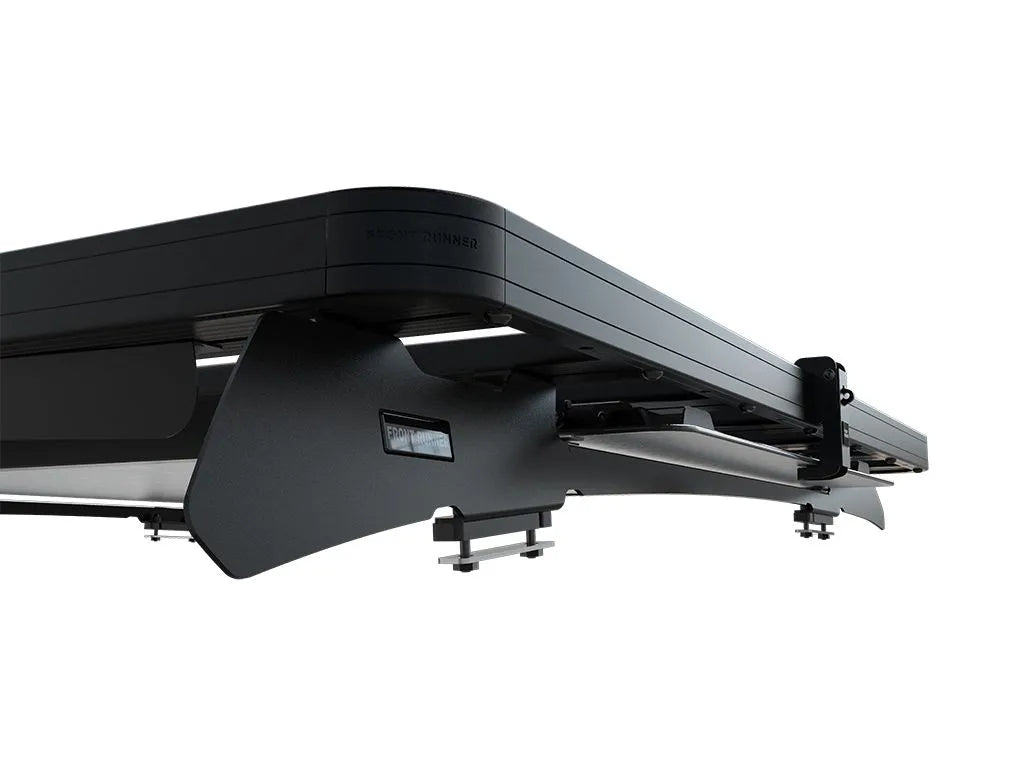

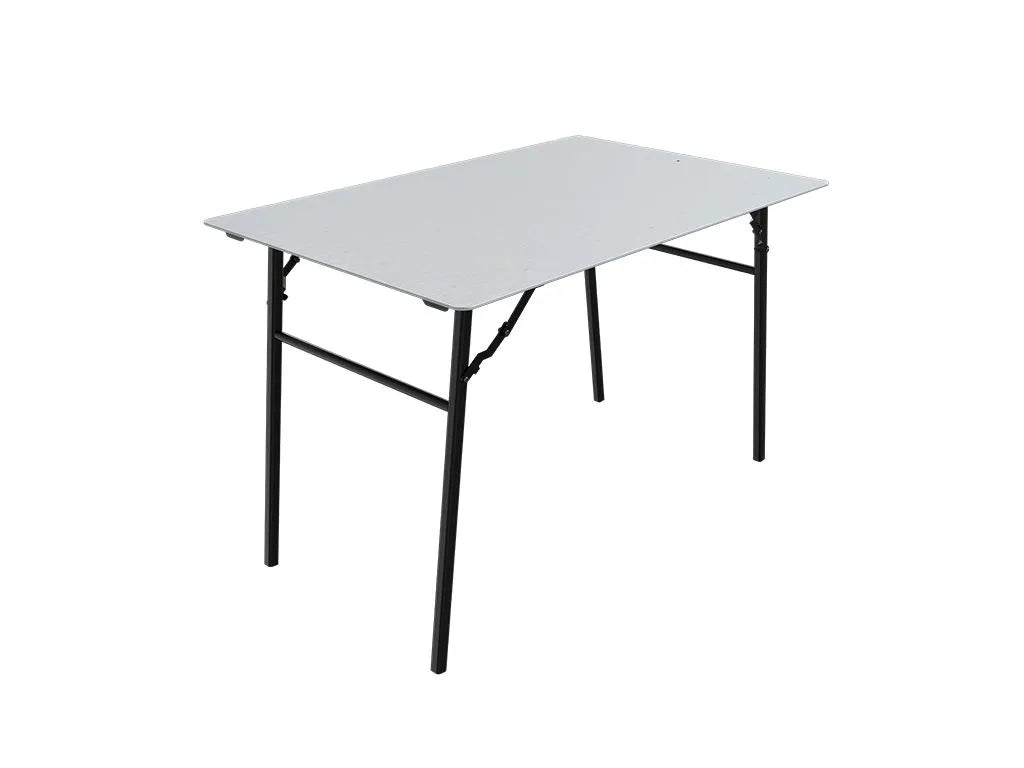

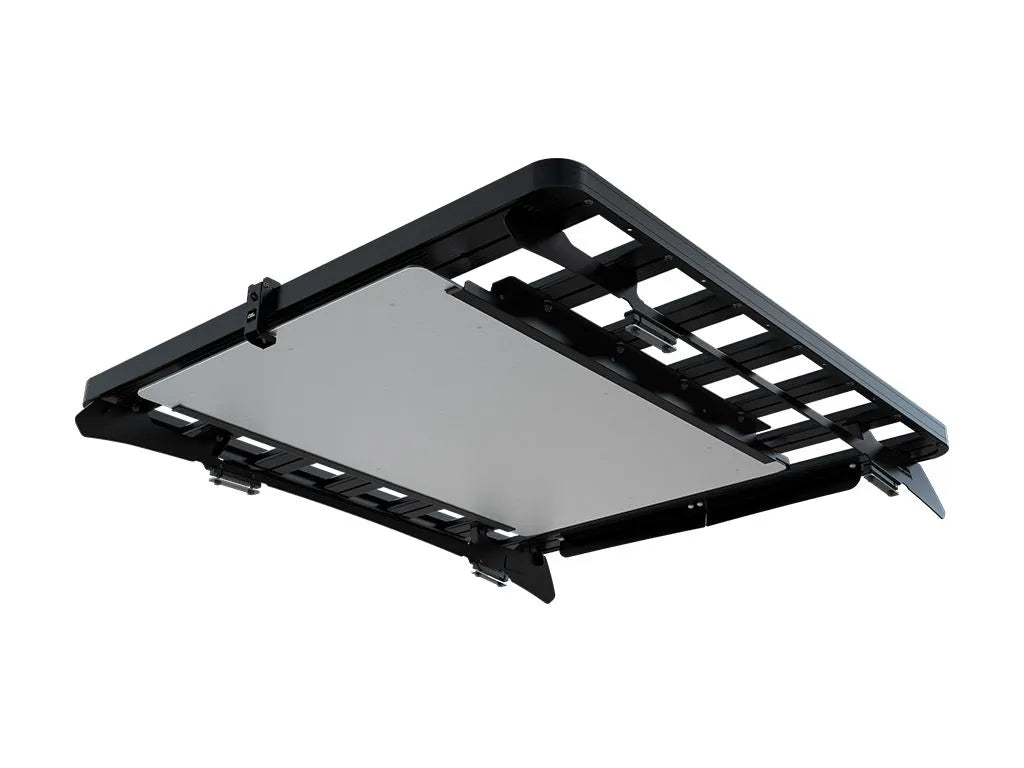

A complete under rack table and table-storage solution that allows you to effortlessly load, transport and access your table when out on any adventure. The Under Rack Table Kit mounts underneath your Front Runner Roof Rack and features the Under Rack Table –– which has an aluminum PVDF top and high-strength black powder-coated steel frame –– as well as the brackets, slides, and latches needed to mount it.
Features & Benefits
A complete camp table and table storing solution. Effortlessly take a previously cumbersome luxury item on any vehicle-based adventure.
- The table frame slides into the storage brackets and is secured with the table latch eliminating any excessive noise.
- An aluminum PVDF table top ensures a hygienic surface for preparing and serving meals.
- The table frame and legs are powder-coated black with the same durable, corrosion-resistant coating as the Front Runner Slimline II Roof Rack.
Under Rack Table Bracket:
- A no-noise and secure storage solution designed specifically for the Under Rack Table.

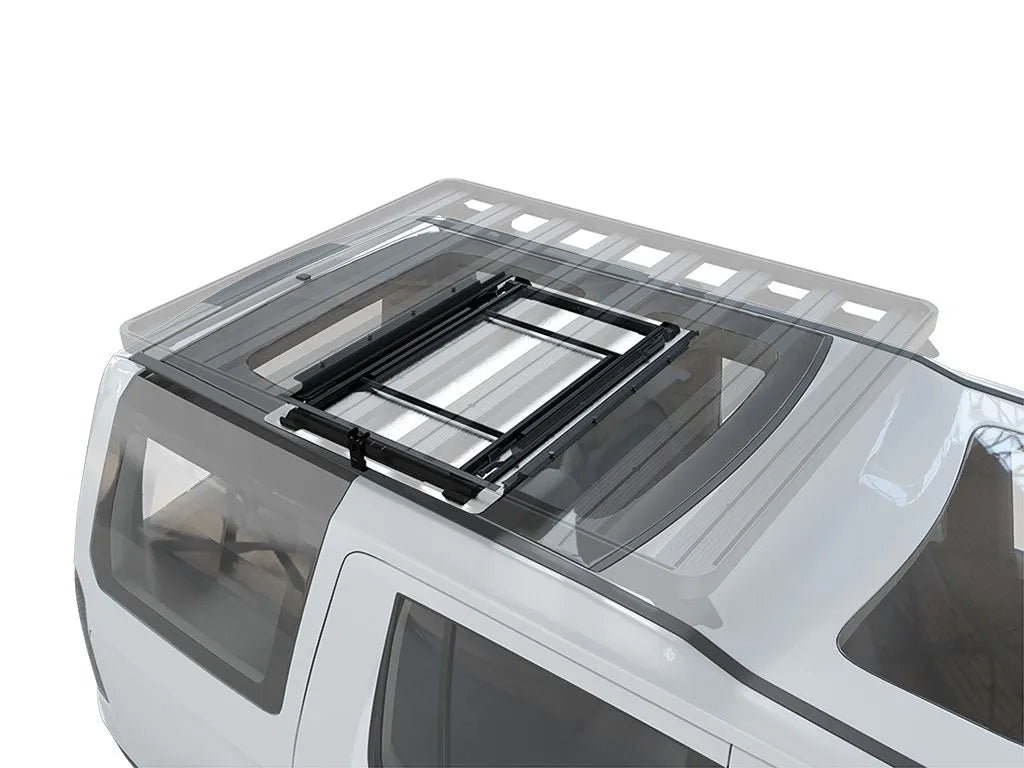

- The brackets can be mounted both parallel and perpendicular to the roof rack's slats, allowing access to the table from the side or rear of the vehicle.
- Easy installation.
- Made of steel and is black powder-coated in the same durable and corrosion-resistant coating as the Front Runner Slimline II roof rack.
Under Rack Table Latch :
- Keeps the Under Rack Table securely stored in the Under Rack Table Bracket.
- Secured to the top of the Slimline II roof rack using the T-slot and clamps over the lip of the table to keep it in place.
- A rubber insert prevents rattling and damage to the table.
- Spring loaded for ease of use.
- Lockable for added security.
- Made of steel and is black powder-coated in the same durable and corrosion-resistant coating as the Front Runner Slimline II roof rack.
NOTE: Table fitment requires 65mm (2.5") clearance from under the rack to the highest point of the roof.Side mounting requires 4 open slats. Rear mounting requires 7 open slats and is not suitable for vehicles with rear roof antenna.

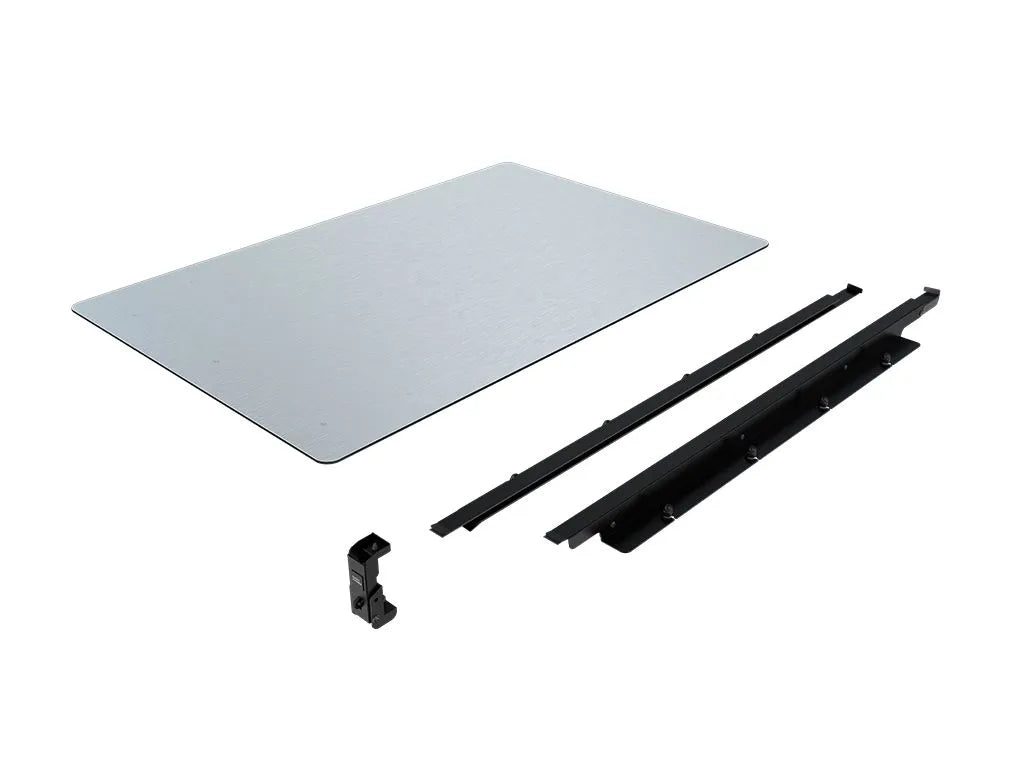

Consists of
|
1 x Under Rack Table 1 x Pro Table Under Rack Bracket 1 x Under Rack Table Latch |
Materials used
|
Black composite table top with aluminium finish Black powder coated steel frame Black powder coated aluminium legs |
Product Dimensions
|
Closed Dimensions: 1130mm (44.5") L x 750mm (29.5") W x 32mm (1.3") H |
Open Dimensions
|
1130mm (44.5") L x 750mm (29.5") W x 750mm (29.5") H |
Weight
|
11.2kg (24.7lbs) |
Under-Rack Table Latch
|
Materials used: |
Product Dimensions
|
115mm (4.5") H x 50mm (2") W x 50mm (2") L |
Under-Rack Table Bracket:
|
Black Powder-coated high strength steel |
Product Dimensions
|
980mm (38.6") L x 63mm (2.5") W x 44mm (1.8") H (Single Bracket) |
Full Kit Dimensions
|
1160mm (14.2") L x 837mm (33") W x 114mm (4.5") H |
Full Kit Weight
|
15.2kg (33.5lbs) |
